3" RHD Bi-LED Projectors (Standard)
3" RHD Bi-LED Projectors (Standard)
Couldn't load pickup availability
Free Shipping
On all NZ orders
Installation Available
Get a fitting quote
Buy Now, Pay Later
Pay in 4 with Afterpay
Description

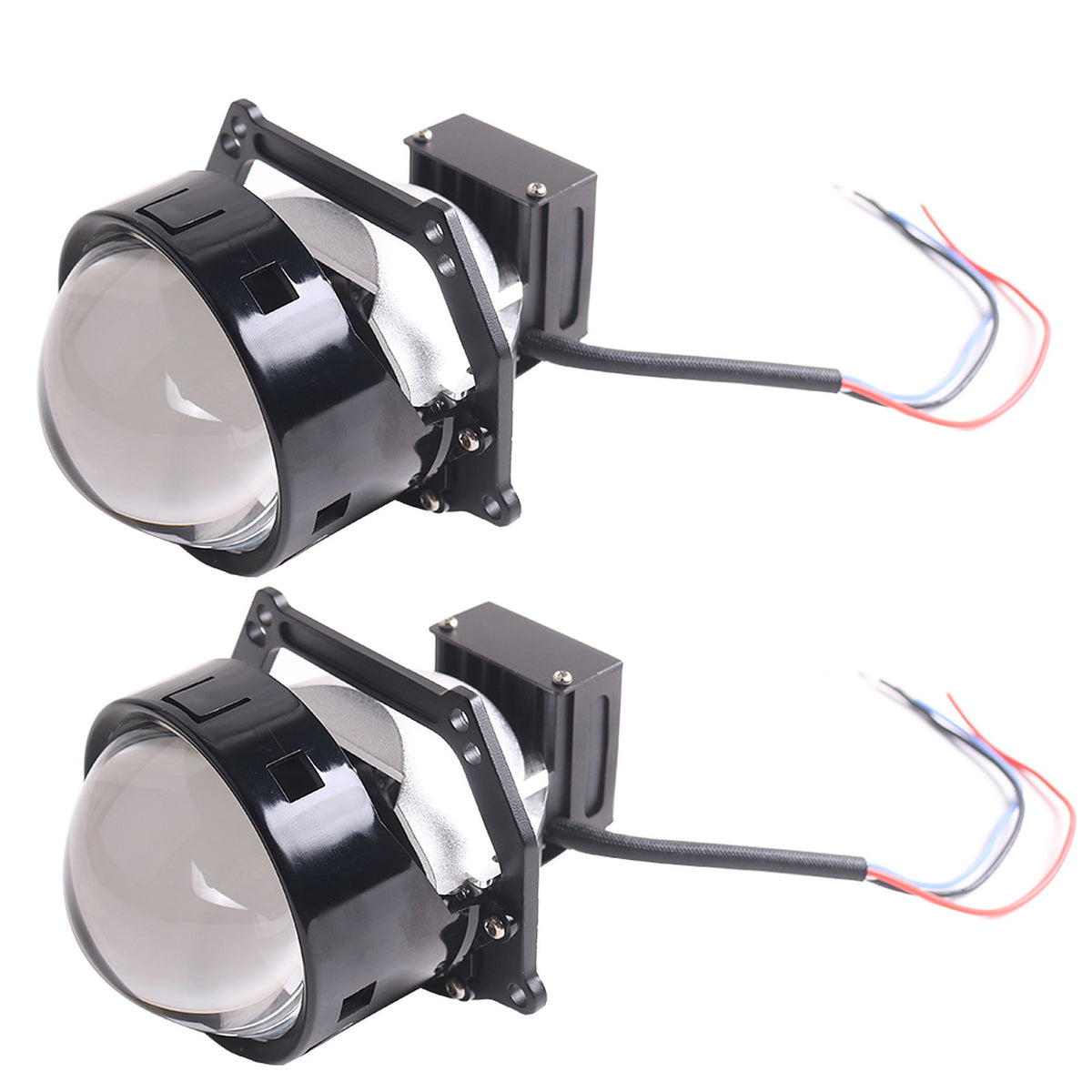

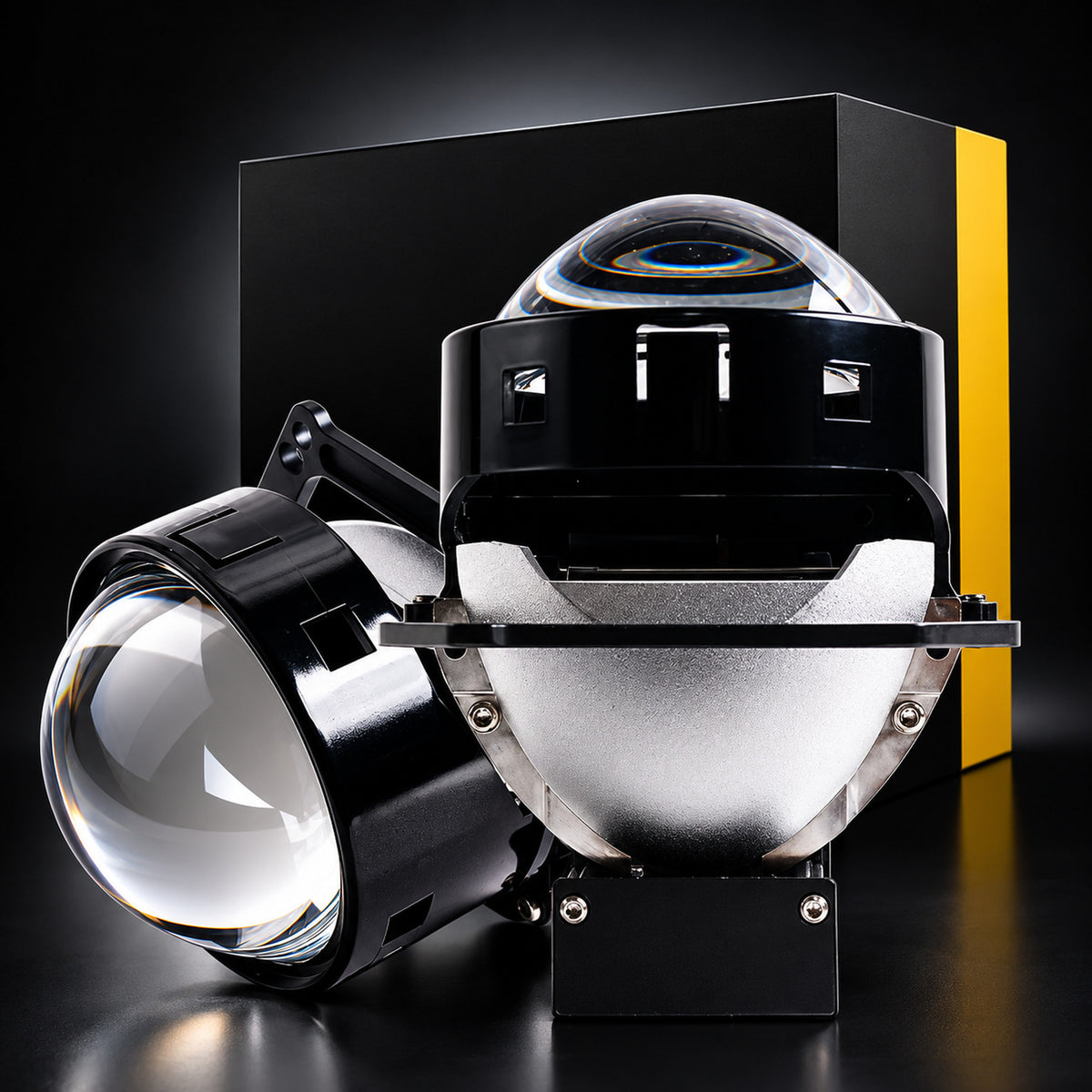

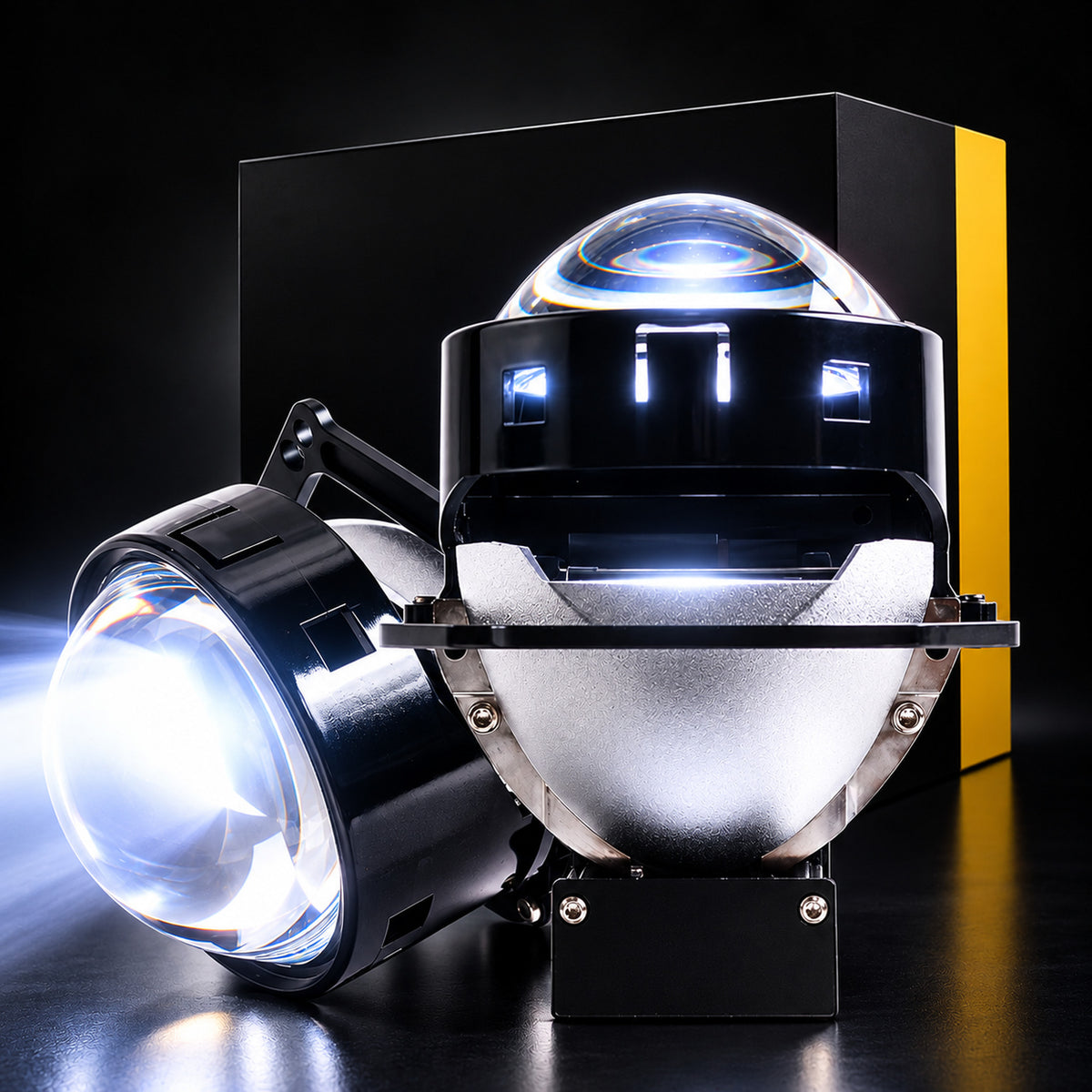

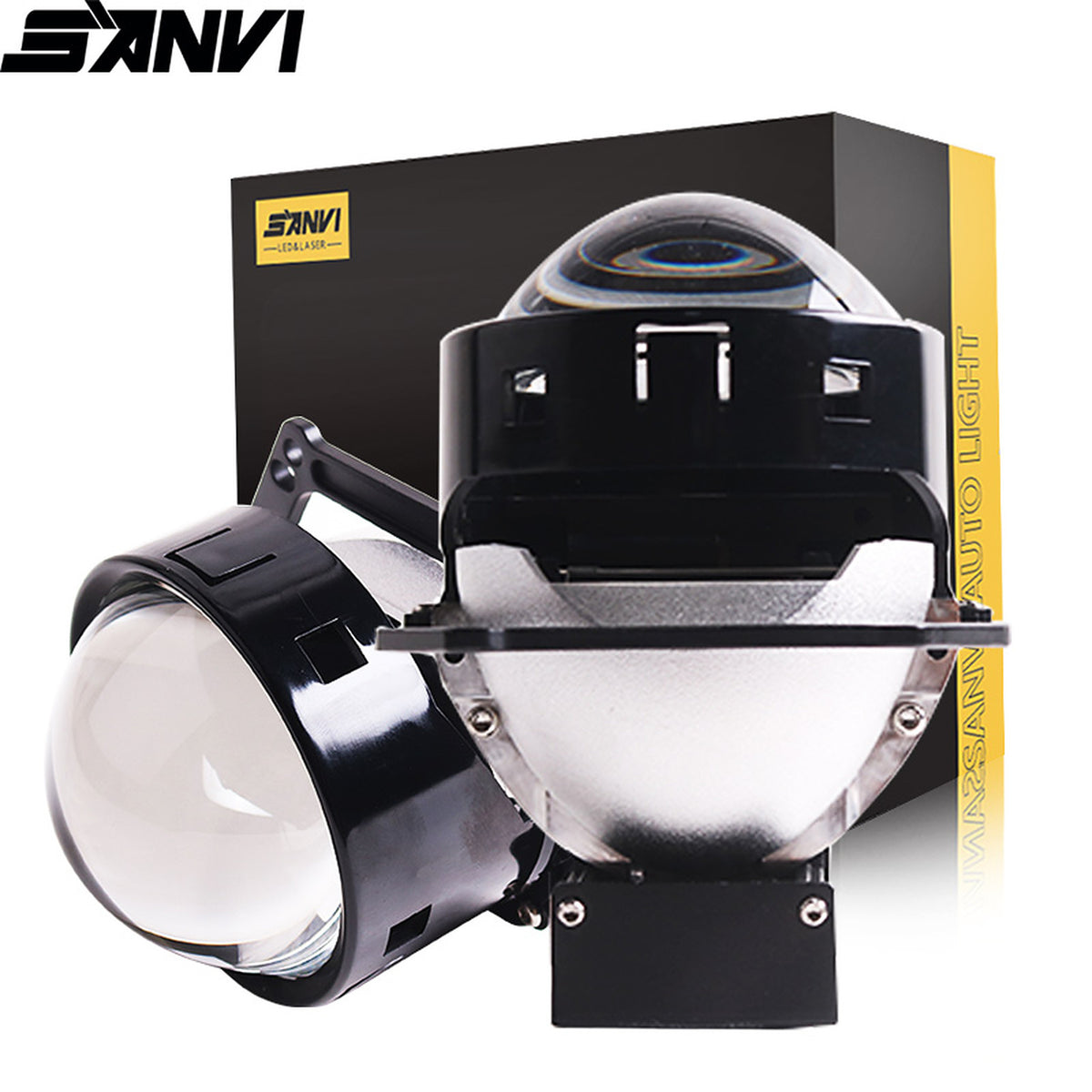

The SANVI 3.0" Bi-LED Projector Lenses come with a right-hand drive (RHD) beam cut-off made for New Zealand roads, giving you a sharp, focused 3" projector beam without the premium price. Each projector uses dual reflectors with separate LED chips for low and high beam, an HD glass lens and a 5500K white output, with a turbo cooling fan and aluminium heat sink to keep temperatures under control.

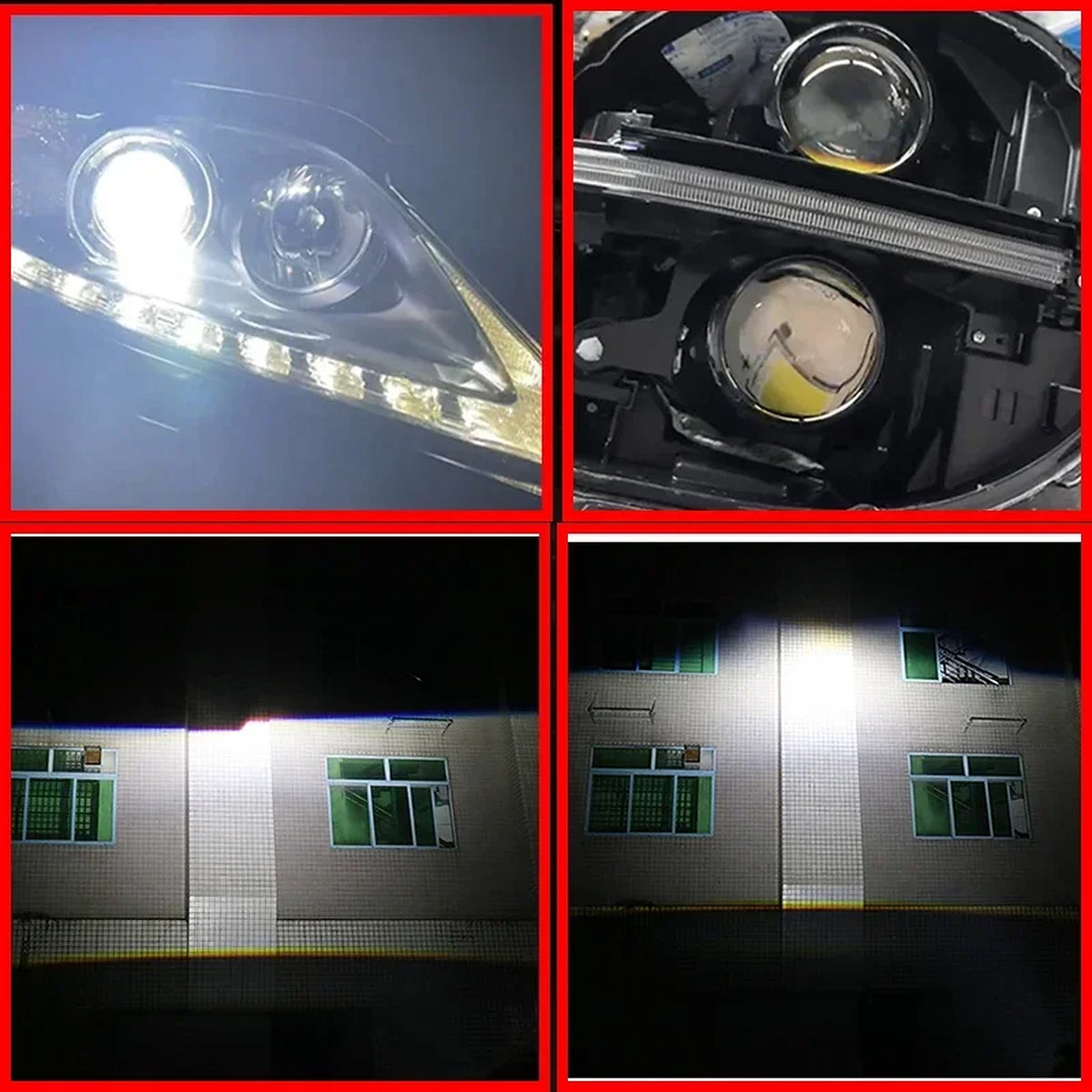

They use the common Hella 3R and G5 mounting pattern, so they suit headlights built around 3" retrofit projectors, and are fitted with the headlight opened up as part of a projector retrofit. Run the projectors on their own, or choose one of three chrome shrouds, or a square or U-shaped halo shroud in white or switchback white/amber to finish the look. Sold as a pair and backed by a 1-year warranty.
Want them fitted? We can retrofit them into your headlights as part of a build. Get in touch for a quote.
Features & Benefits
RHD Beam Pattern for NZ Roads
Right-hand drive cut-off for driving on the left, so the low beam lights up the kerb side without dazzling oncoming traffic.
5500K White Output
Bright, natural white light for clear night-time visibility.

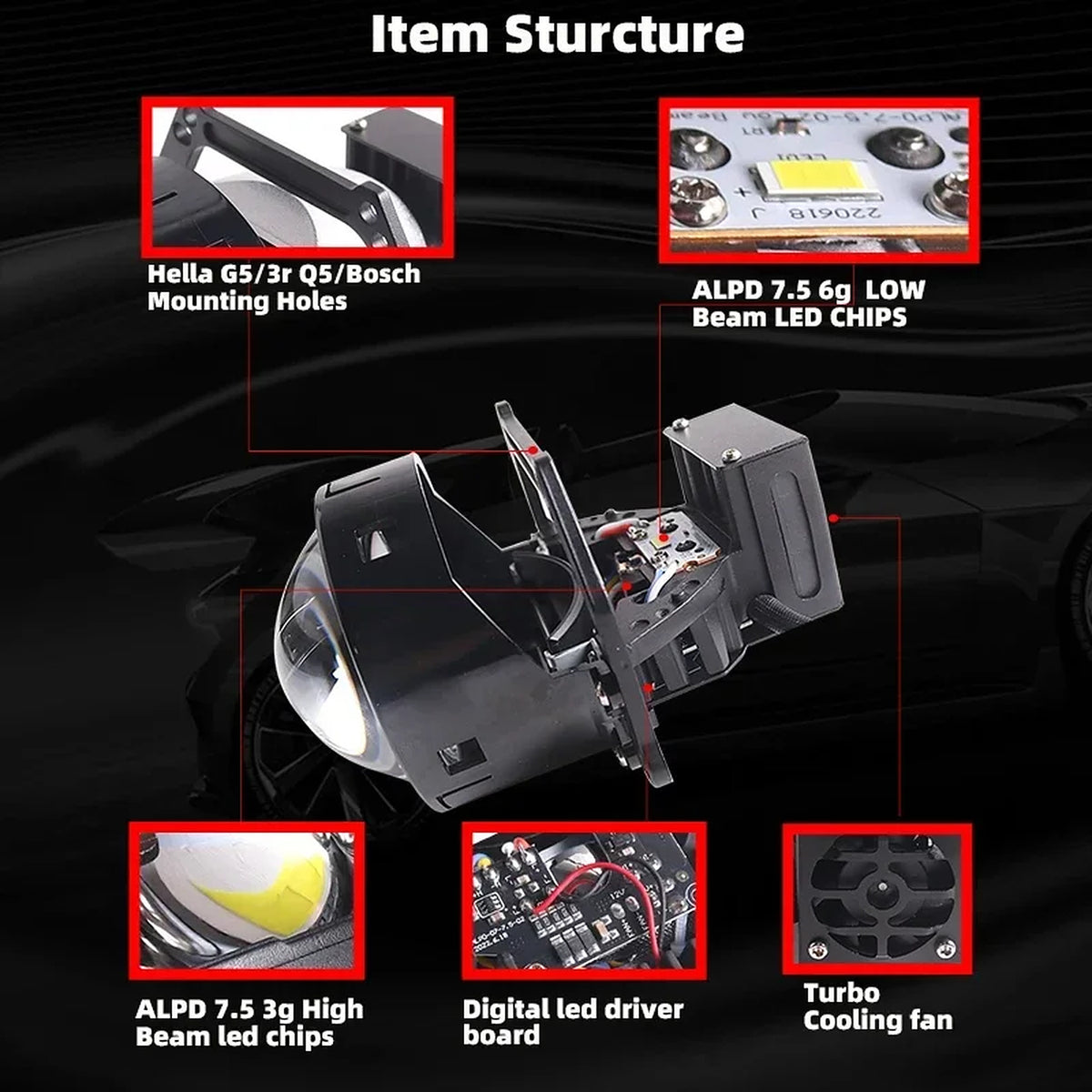

Dual Reflector Bi-LED Design
Separate LED chips and reflectors for low beam and high beam, both from the same projector.
3" HD Glass Lens
Clear glass optics for an even, wide beam and a crisp cut-off line.

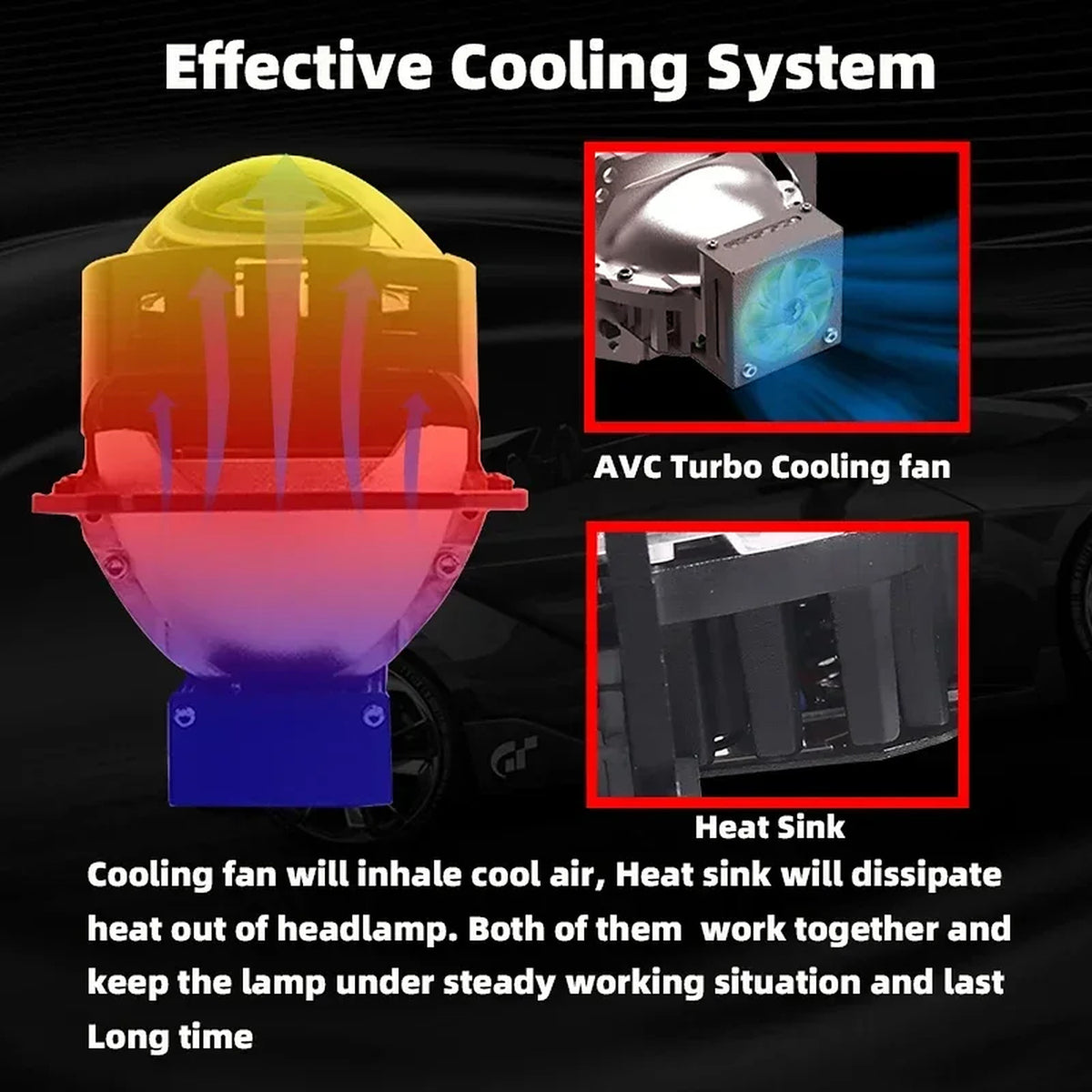

Turbo Cooling
A built-in cooling fan and aluminium heat sink keep the LEDs at a stable temperature for a long service life.
Hella 3R / G5 Mounting
Uses the common Hella 3R and G5 mounting pattern for 3" retrofit projectors.
Compact Size
Just 130mm long overall, leaving more room behind the projector inside the housing.
Shroud & Halo Options
Choose no shroud, a round, turbine or ribbed chrome shroud, or a square or U-shaped halo shroud in white or switchback white/amber.
Sold as a Pair
Two projectors, enough for one set of headlights.
1-Year Warranty
Backed by SANVI for reliable, long-term performance.
Technical Specifications
- Brand: SANVI
- Beam Cut-off: Right-hand drive (RHD), for NZ roads
- Lens Size: 3"
- Lens Material: HD glass
- Colour Temperature: 5500K
- Rated Power: 55W per projector

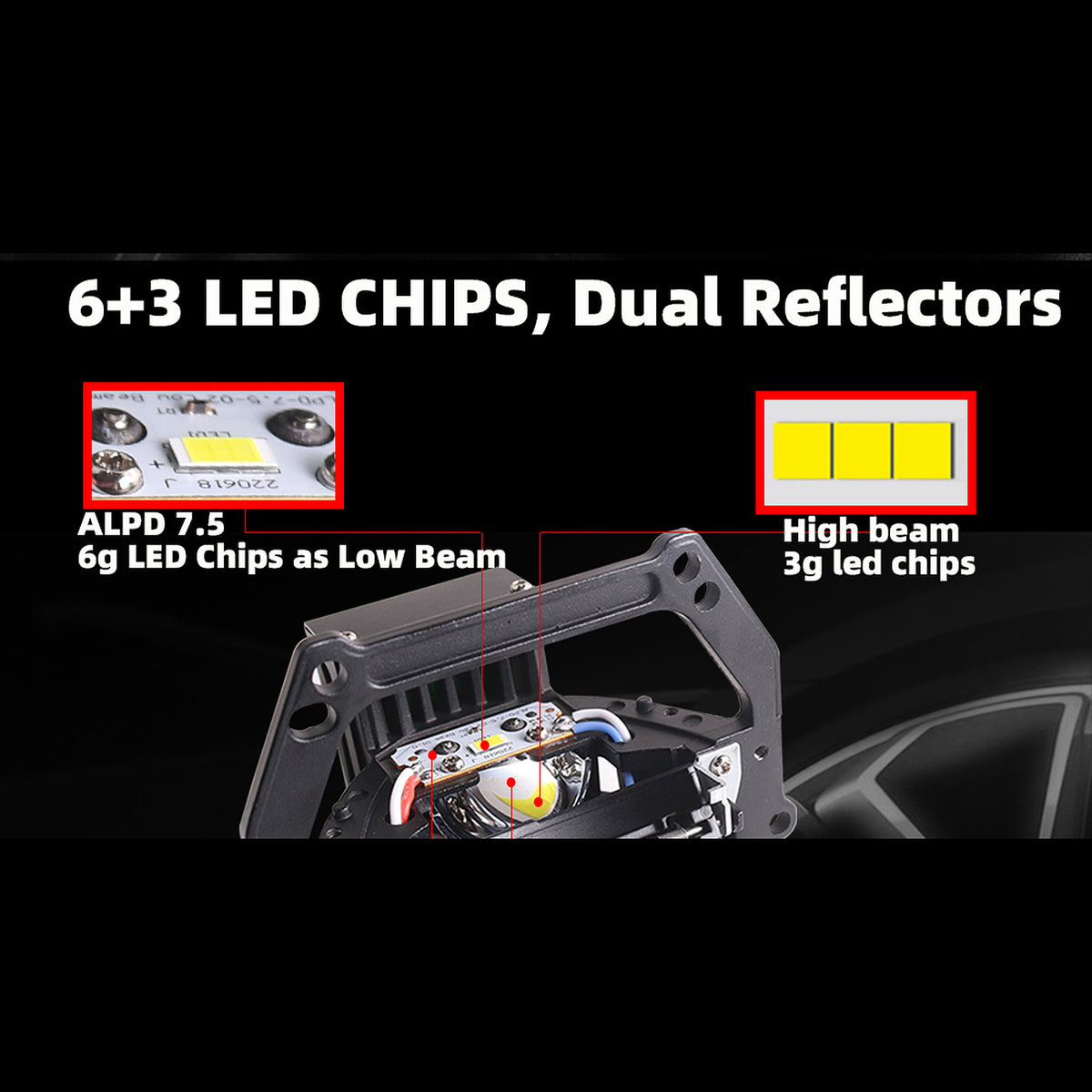

- LED Chips: 6 for low beam, 3 for high beam
- Brightness: 8,040 lux low beam and 10,150 lux high beam (supplier test at 3m)
- Operating Voltage: 9 to 16V DC
- Cooling: Turbo fan and aluminium heat sink
- Rated Lifespan: 30,000 hours
- Mounting: Hella 3R / G5 pattern
- Overall Length: 130mm

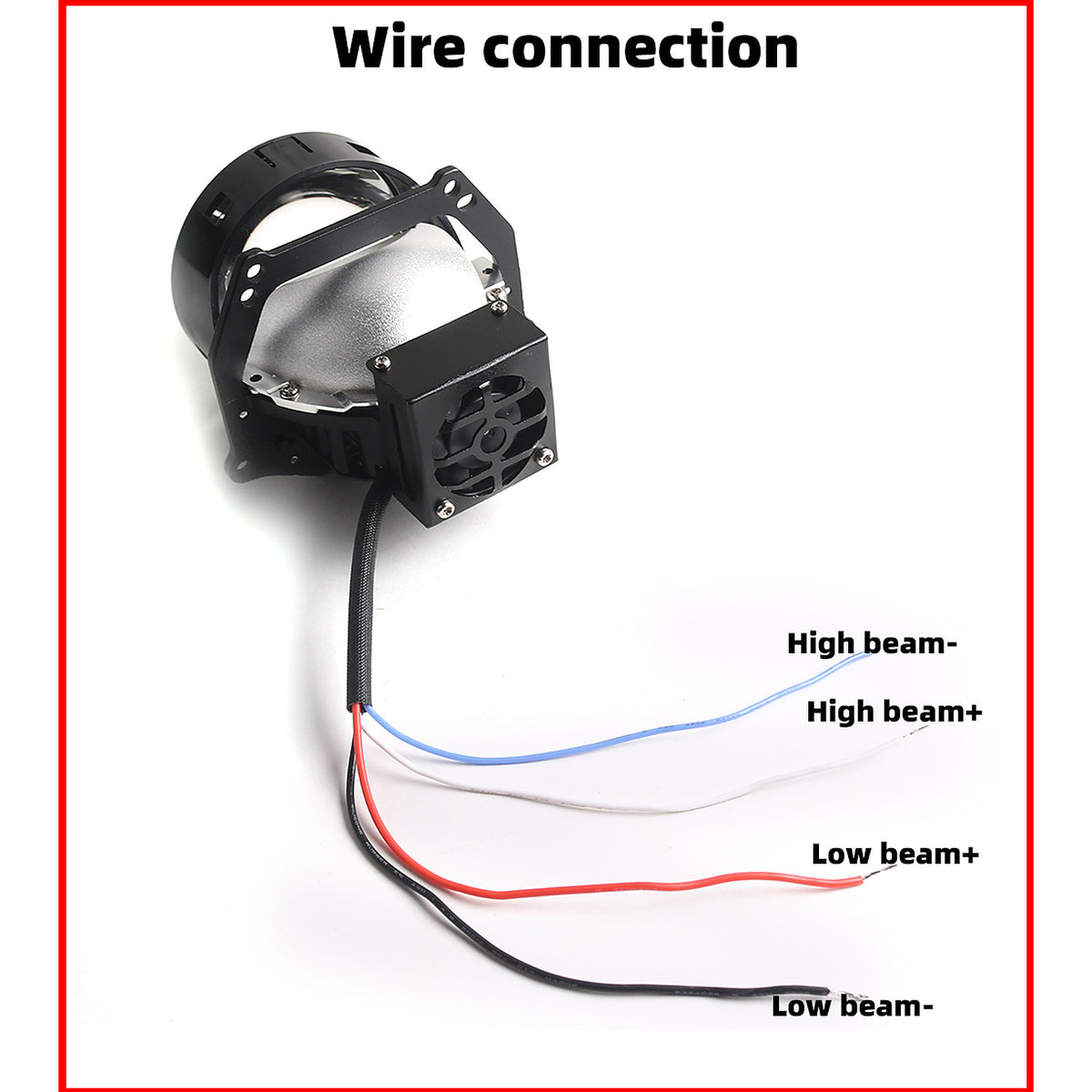

- Wiring: Separate low beam and high beam leads, and halo shrouds have their own leads
- Certification: CE
- Warranty: 1 year
- Quantity: 2× projectors (+2× shrouds if selected)
Shroud Guide
- No Shroud: Projectors only

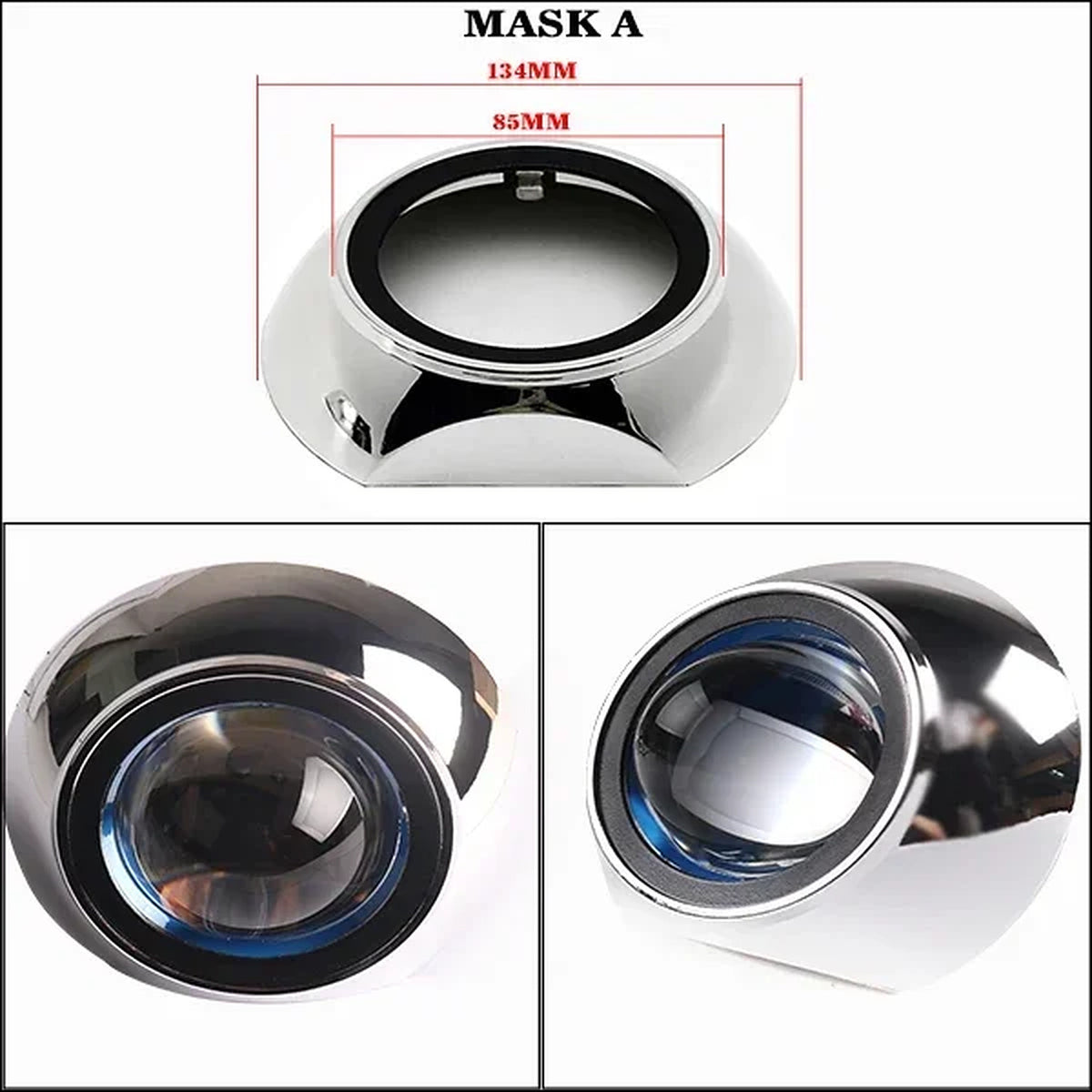

- Chrome Shroud (Round): Smooth round chrome shroud with a black inner ring, 134mm wide

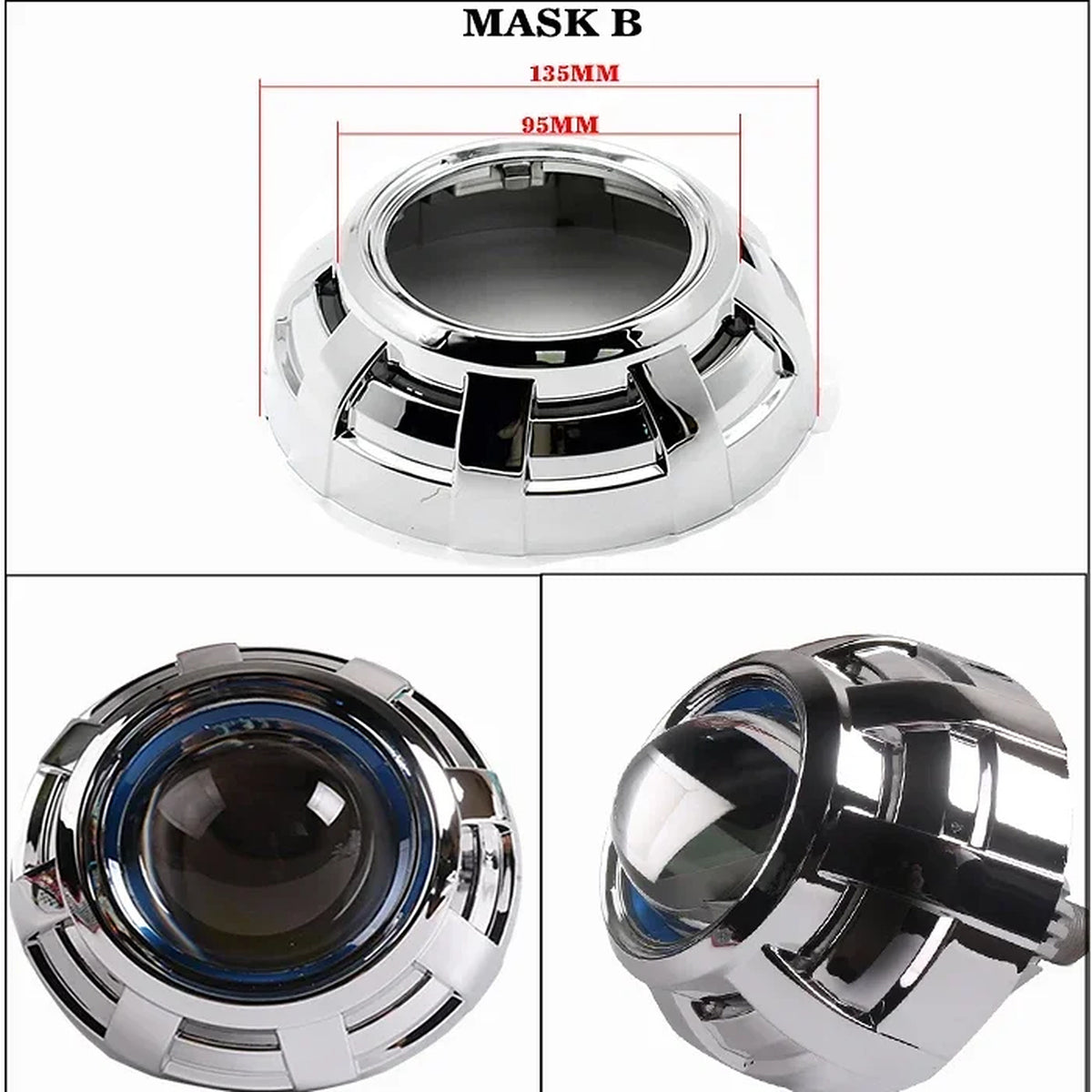

- Chrome Shroud (Turbine): Chrome shroud with a slotted turbine design, 135mm wide

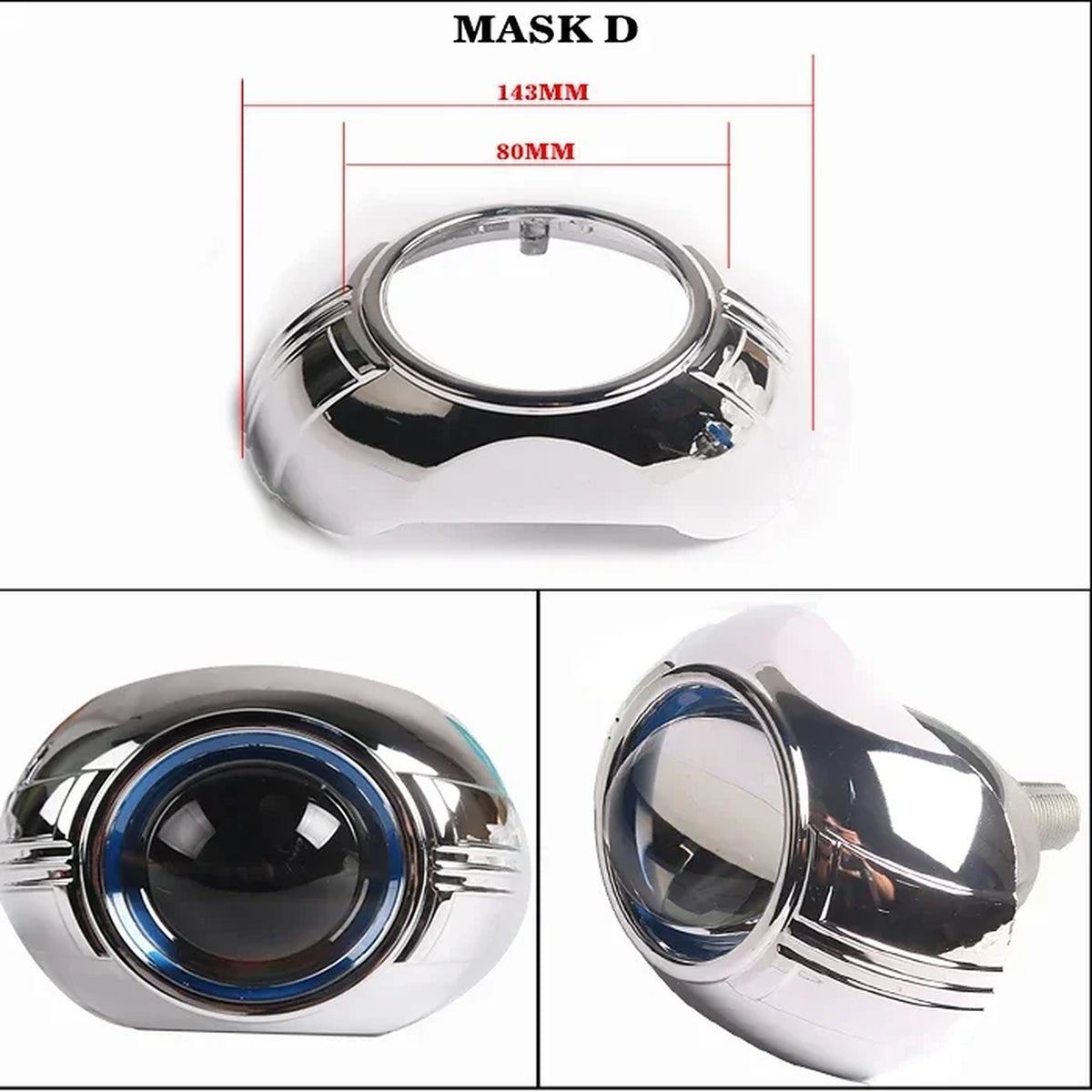

- Chrome Shroud (Ribbed): Chrome shroud with ribbed side detailing, 143mm wide

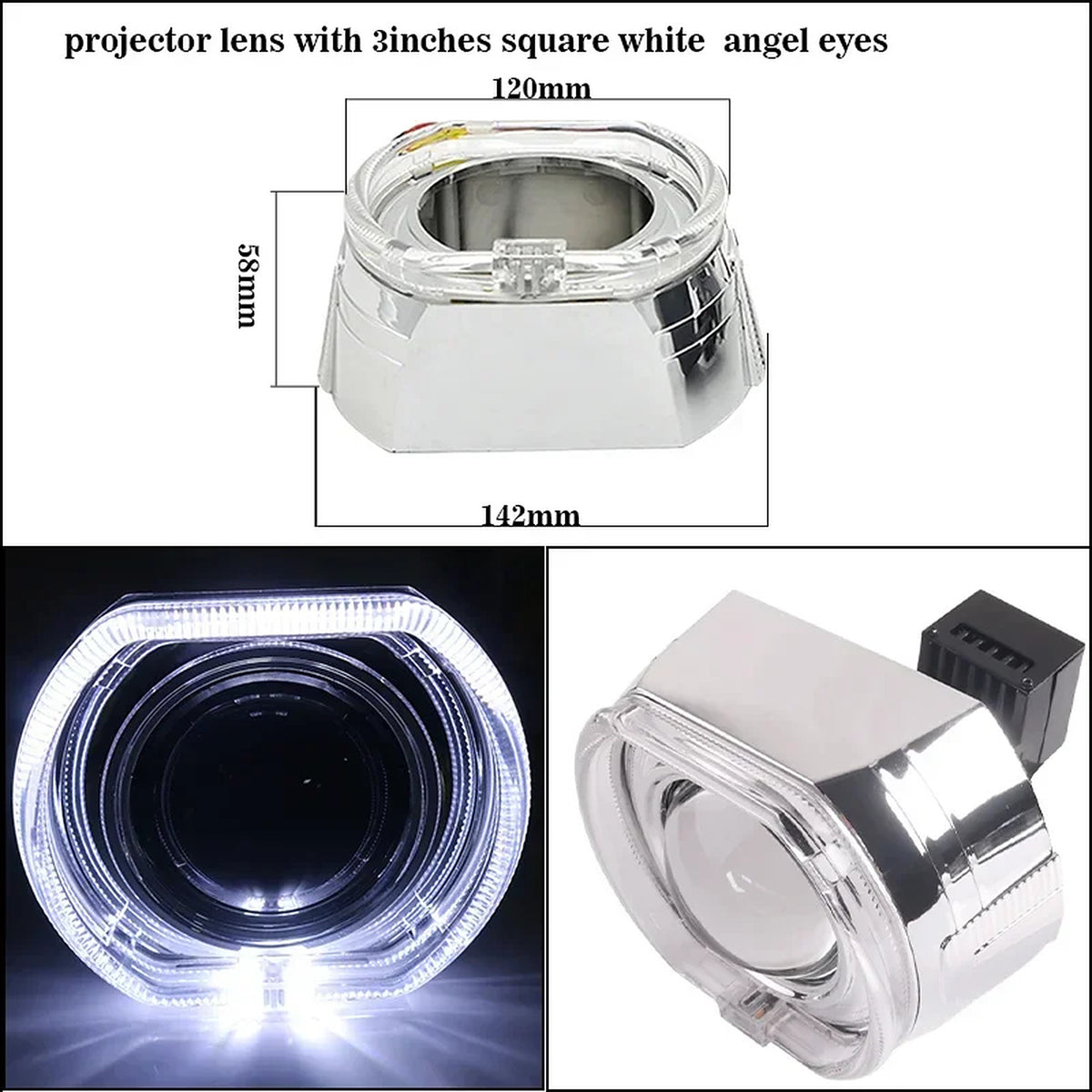

- Square Halo Shroud (White): Square chrome shroud with a full white halo, 142 x 120mm

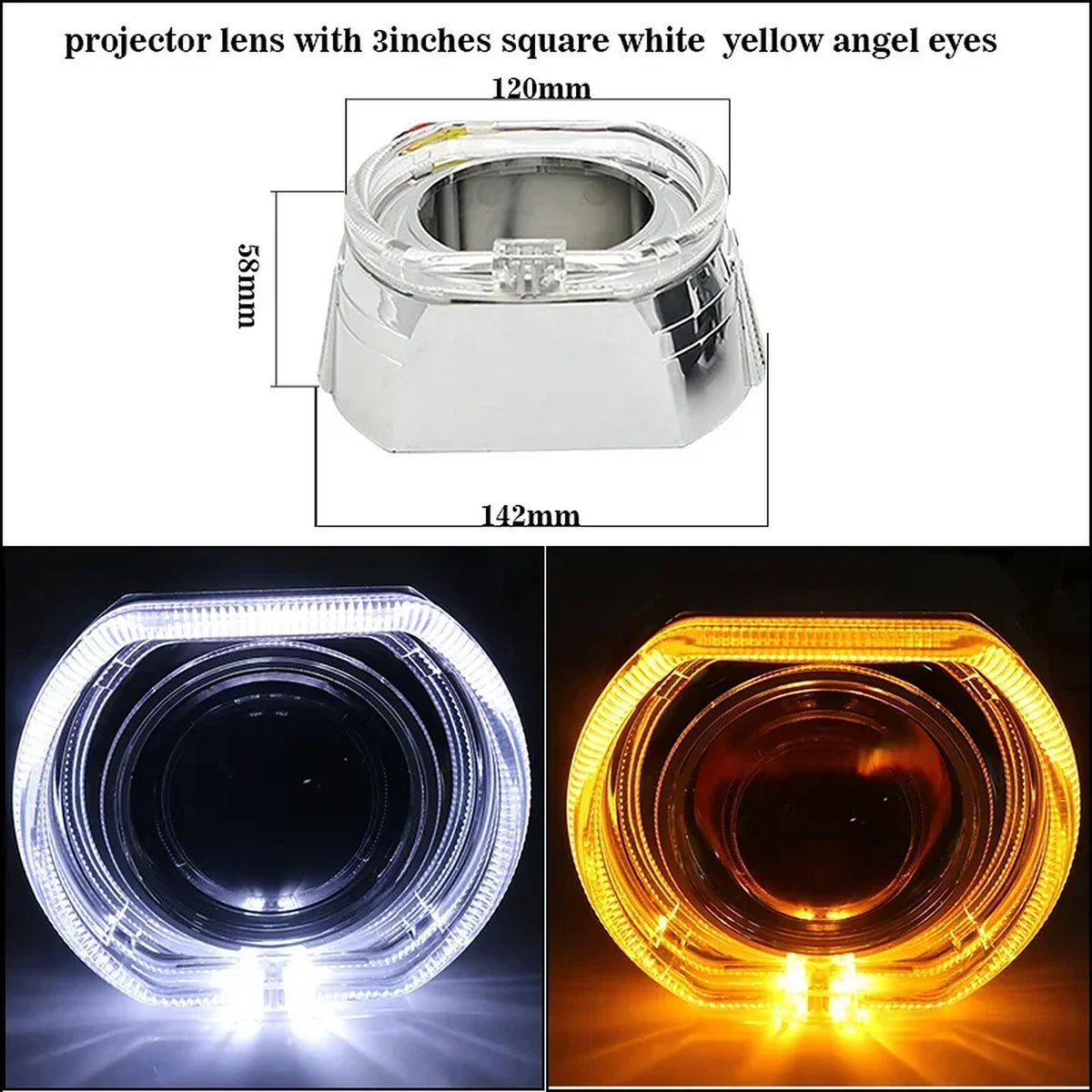

- Square Halo Shroud (Switchback): The square halo in switchback, white as a DRL and amber with the indicator

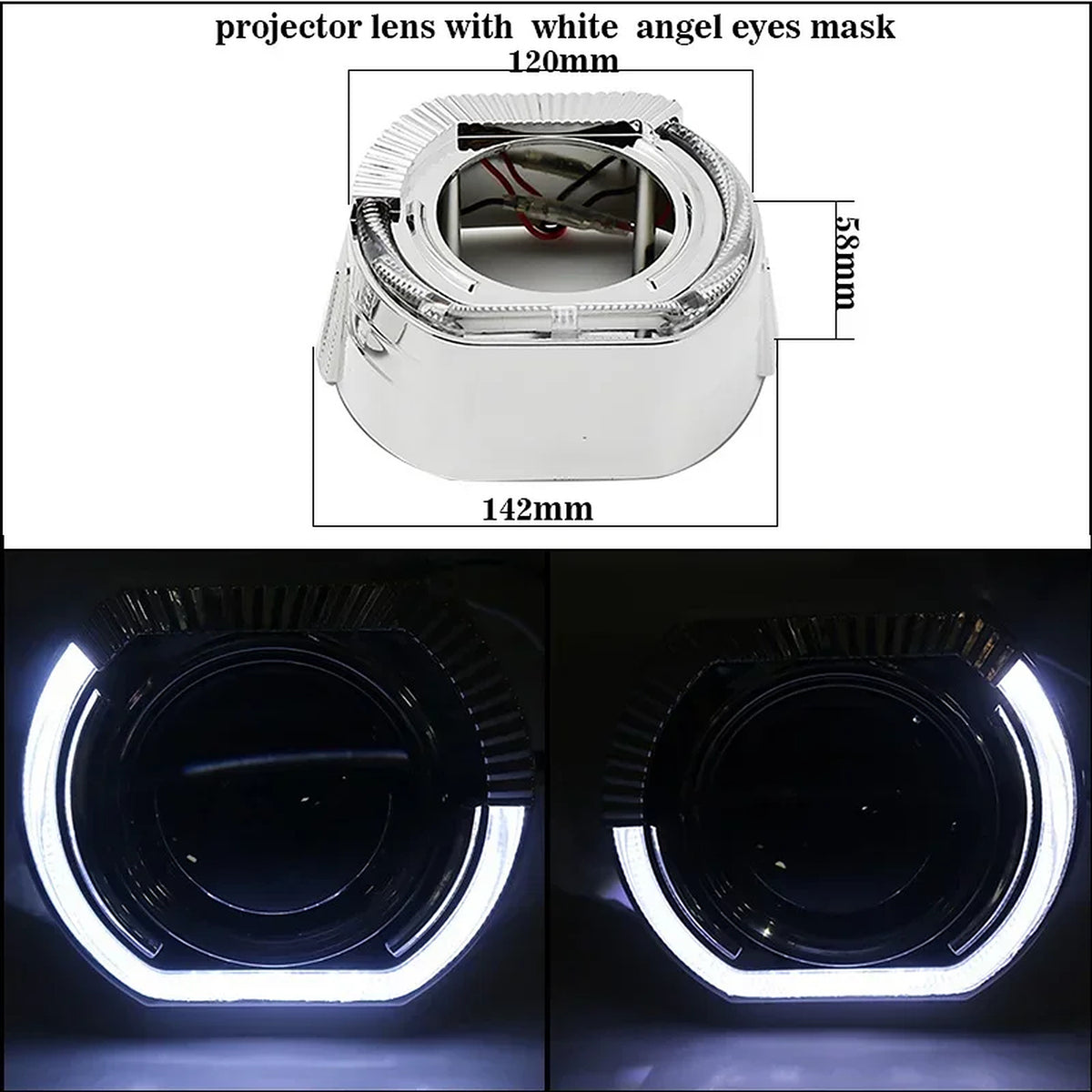

- U Halo Shroud (White): Square chrome shroud with a U-shaped white halo, 142 x 120mm

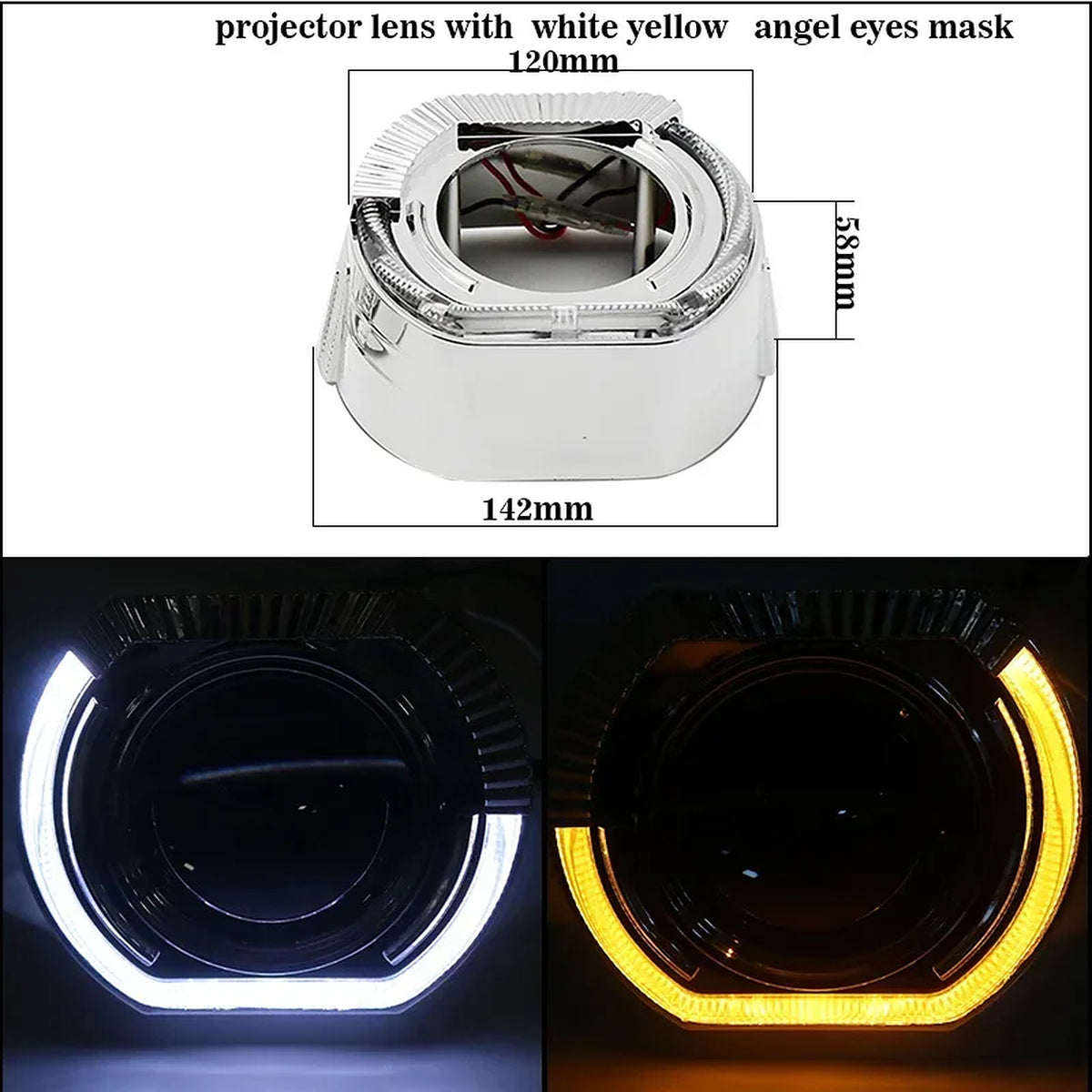

- U Halo Shroud (Switchback): The U-shaped halo in switchback, white as a DRL and amber with the indicator
