Morimoto XBT Bluetooth Controller
Morimoto XBT Bluetooth Controller
Couldn't load pickup availability
Free Shipping
On all NZ orders
Installation Available
Get a fitting quote
Buy Now, Pay Later
Pay in 4 with Afterpay
Description

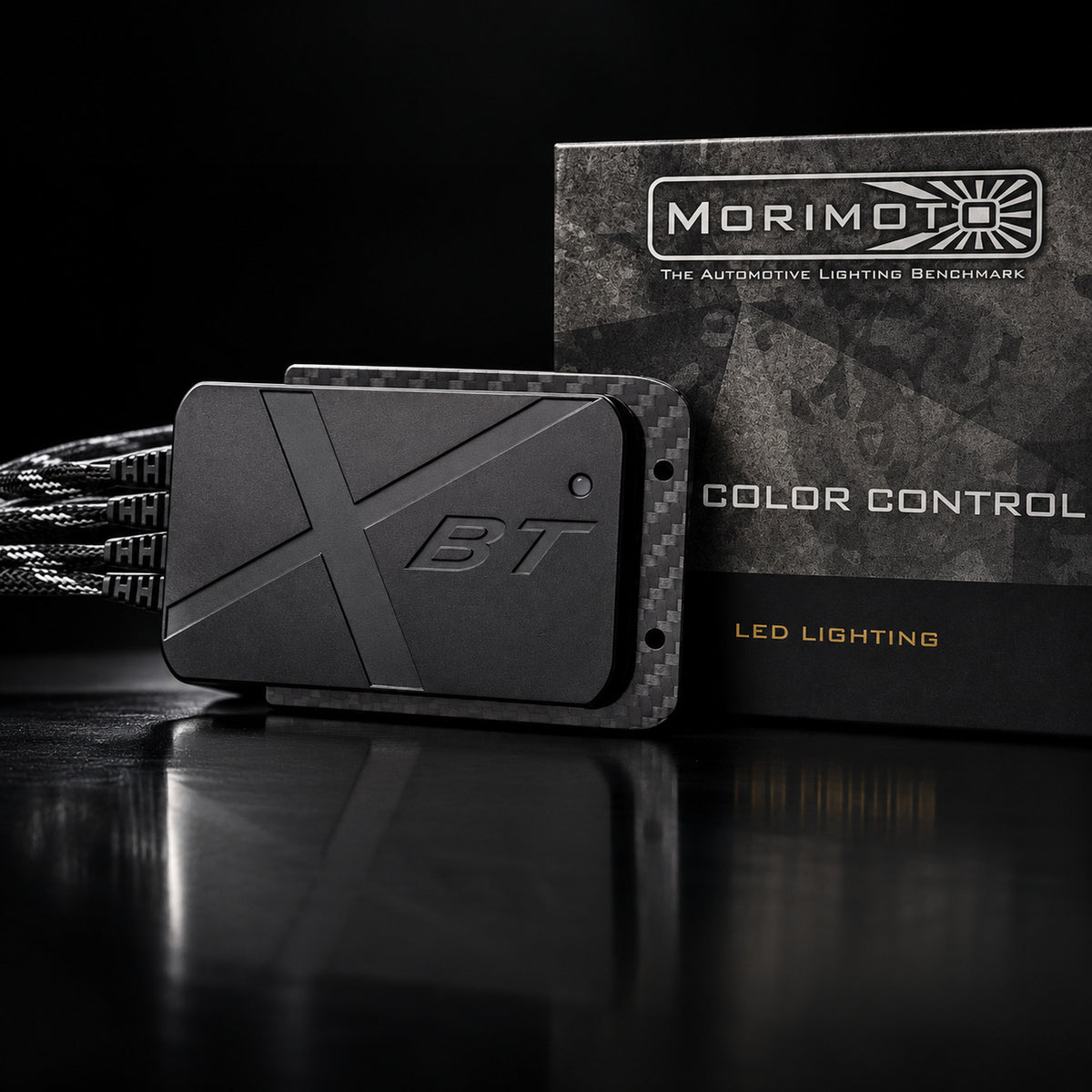

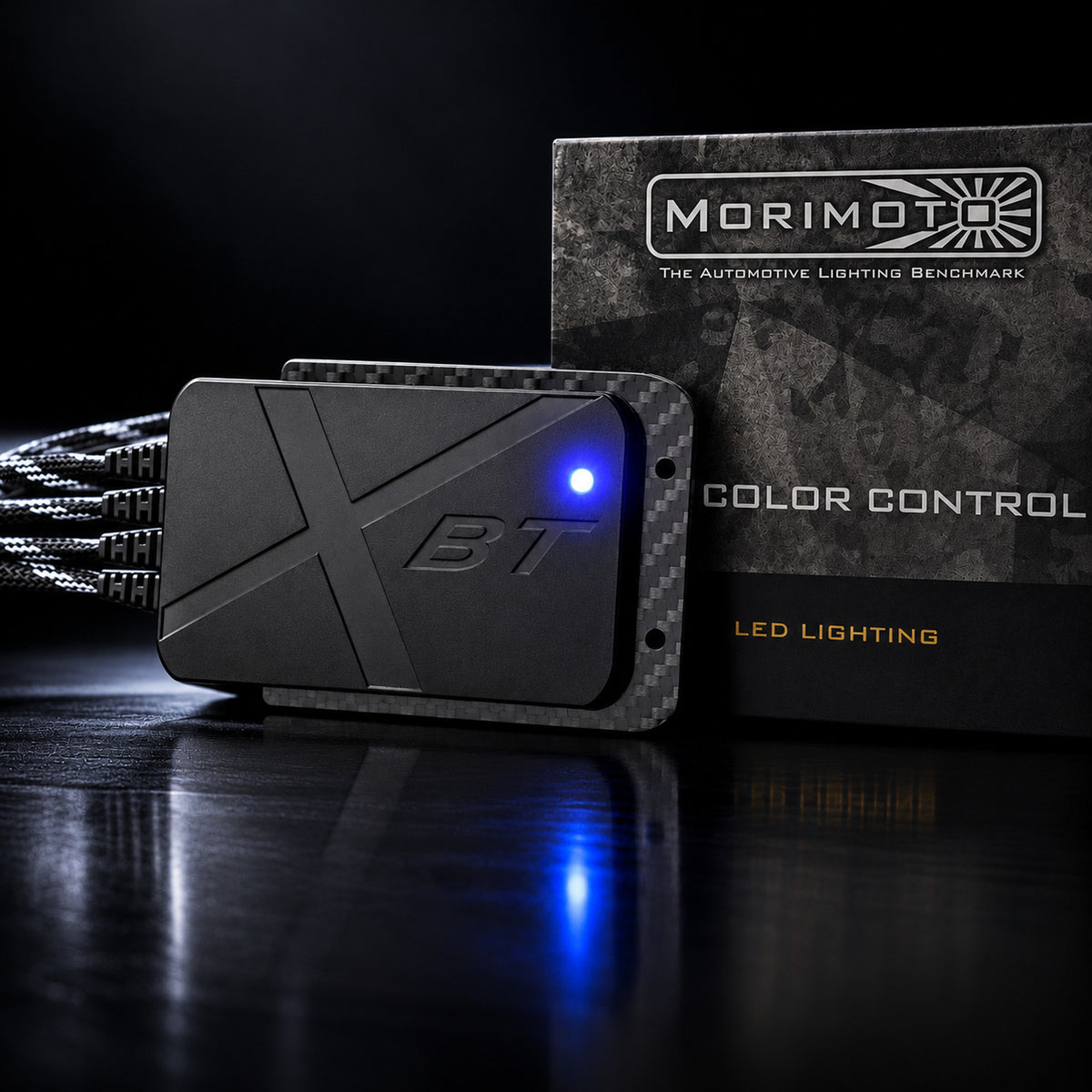

The Morimoto XBT Bluetooth Controller is a versatile RGB controller designed for managing accent lighting in custom headlight builds. Updated to version 1.4 in March 2023, it works with current iOS and Android operating systems and supports up to three different zones of RGB accessories simultaneously.

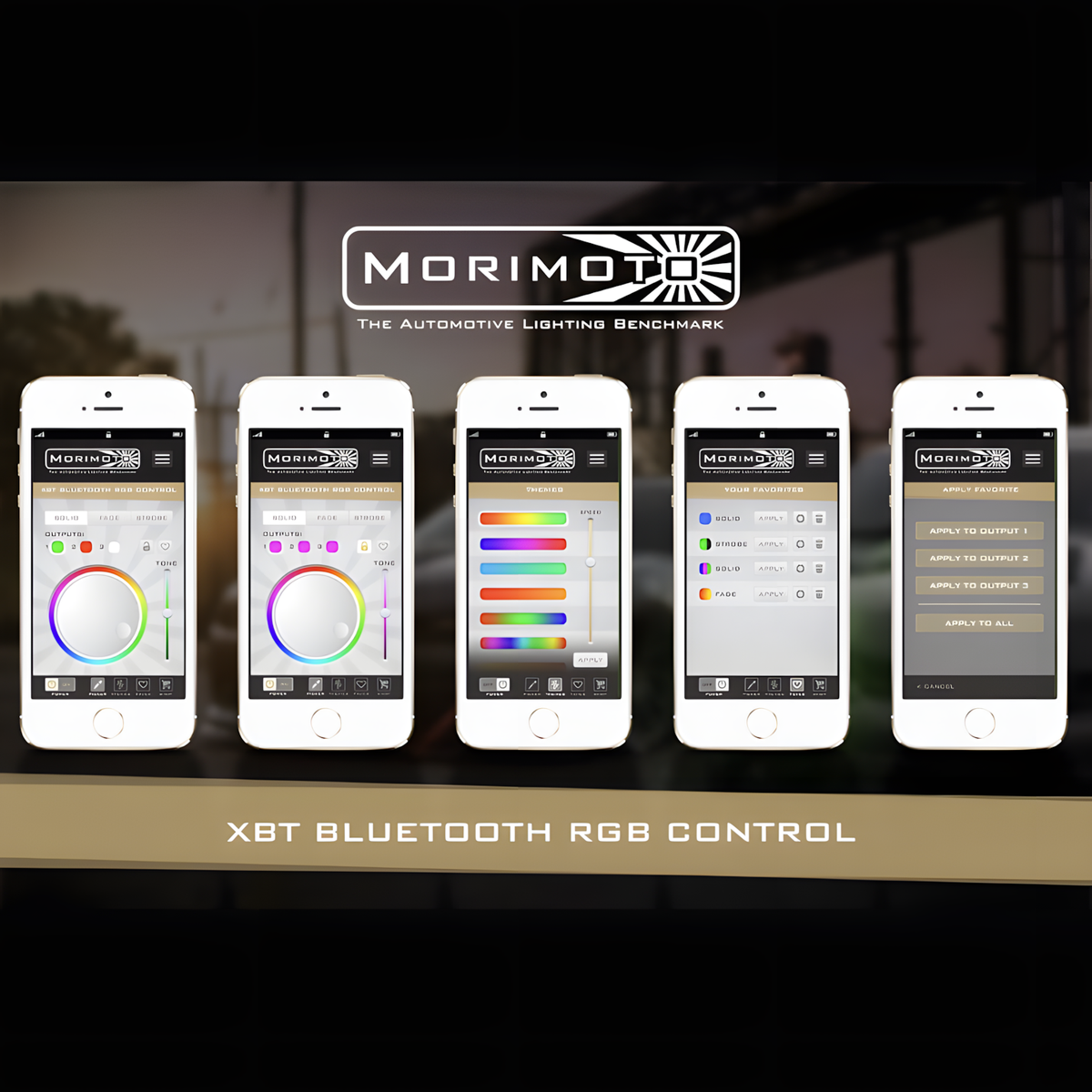

The dedicated XBT smartphone app provides control over colour and intensity, with adjustable fade, strobe, and pre-programmed effects. Pairing logic was streamlined in the v1.4 update to skip unnecessary screens for quicker setup, and a "Favorites" feature stores pre-configured pure red, green, and blue settings tuned for use with Morimoto and Profile RGB accessories.
The controller uses an industry-standard JST 4-wire RGB+ output, so it's compatible with most aftermarket RGB accessories — not just Morimoto branded products. Plug-and-play installation with no wire stripping or splicing required. Backed by a 3-year Morimoto warranty.
Features & Benefits
Three-Zone Control
Manage up to three independent RGB accessory zones simultaneously — apply different colours or effects to each, or lock them together for unified control.
Plug-and-Play Installation
Industry-standard JST 4-wire RGB+ outputs — no wire stripping or splicing required.
iOS & Android App
Free Morimoto XBT app gives full colour-wheel control, fade, strobe, and pre-programmed colour-changing themes.
Custom Favourites
Save your preferred colour combinations to the favourites list for instant recall.
Pre-Configured Pure Colours
Built-in red, green, and blue presets calibrated for use with Morimoto and Profile RGB accessories.
Loop & Picker Effects
Sequences across the three outputs in a loop, with customisable output zone naming.
Color Memory
Remembers and restores your last-used colour setting on power-up rather than defaulting to white.
Carbon Fibre Mounting Bracket
Real carbon fibre bracket with matte/gloss finish on the injection-moulded shell.
FCC Certified
FCC ID: 2A73A-LED153.
3-Year Warranty
Backed by Morimoto, serviced and supported direct from their team.
Technical Specifications
- Brand: Morimoto
- Model: XBT Bluetooth Controller (v1.4, March 2023)
- Compatible Circuits: 12–24V Electrical Systems
- Input: Bare wire (9.5in / 24cm)
- Outputs: 3× JST 5-Pin RGB
- Current: 12A Max (3× 4A per zone)
- Modes: Solid, Fade, Strobe
- App: Morimoto XBT (iOS & Android)
- Certification: FCC ID 2A73A-LED153
- Warranty: 3 years
- Includes: 1× Morimoto XBT Bluetooth Controller
