Morimoto M LED 2.0 Bi-LED Projectors (3" RHD)
Morimoto M LED 2.0 Bi-LED Projectors (3" RHD)
Couldn't load pickup availability
Free Shipping
On all NZ orders
Installation Available
Get a fitting quote
Buy Now, Pay Later
Pay in 4 with Afterpay
Description

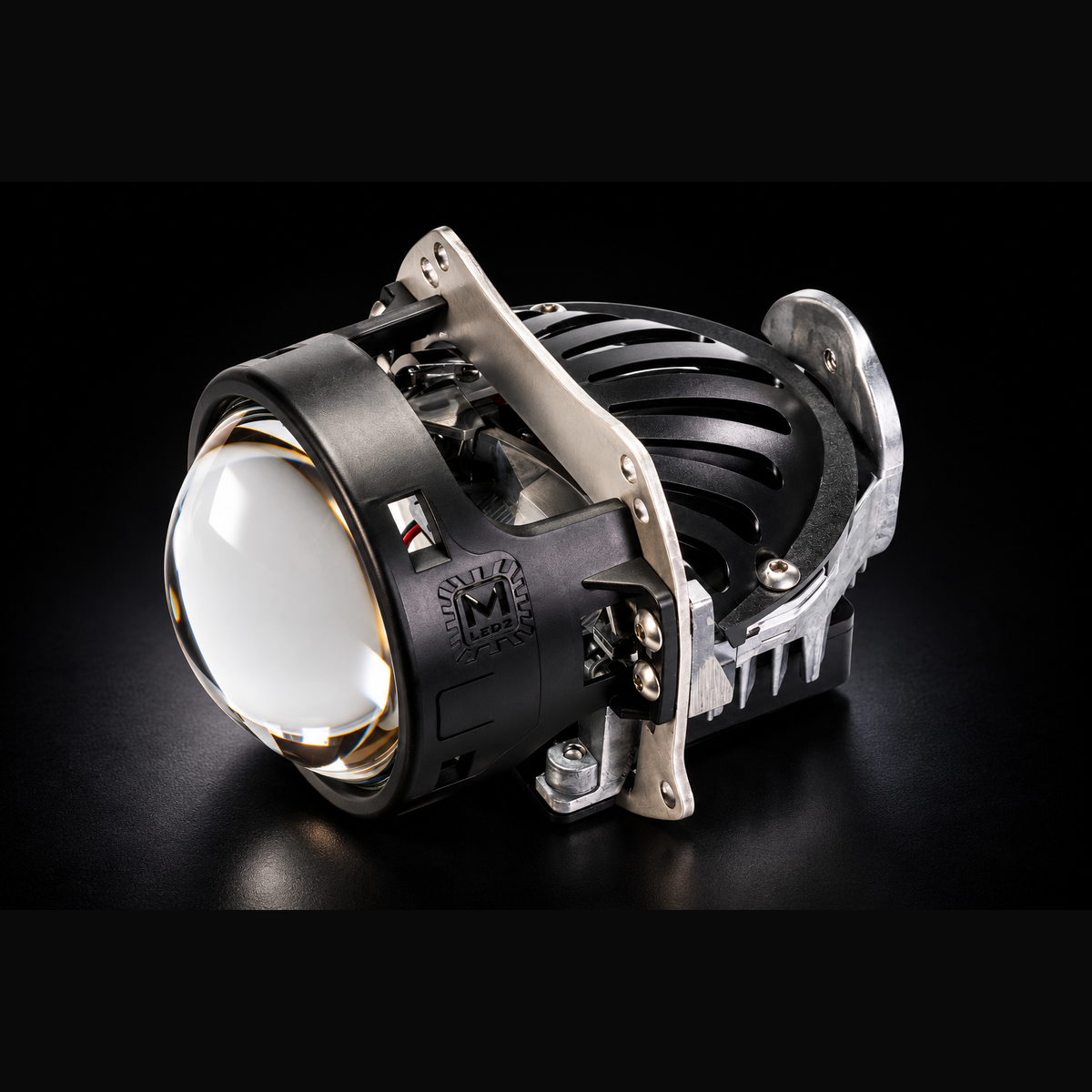

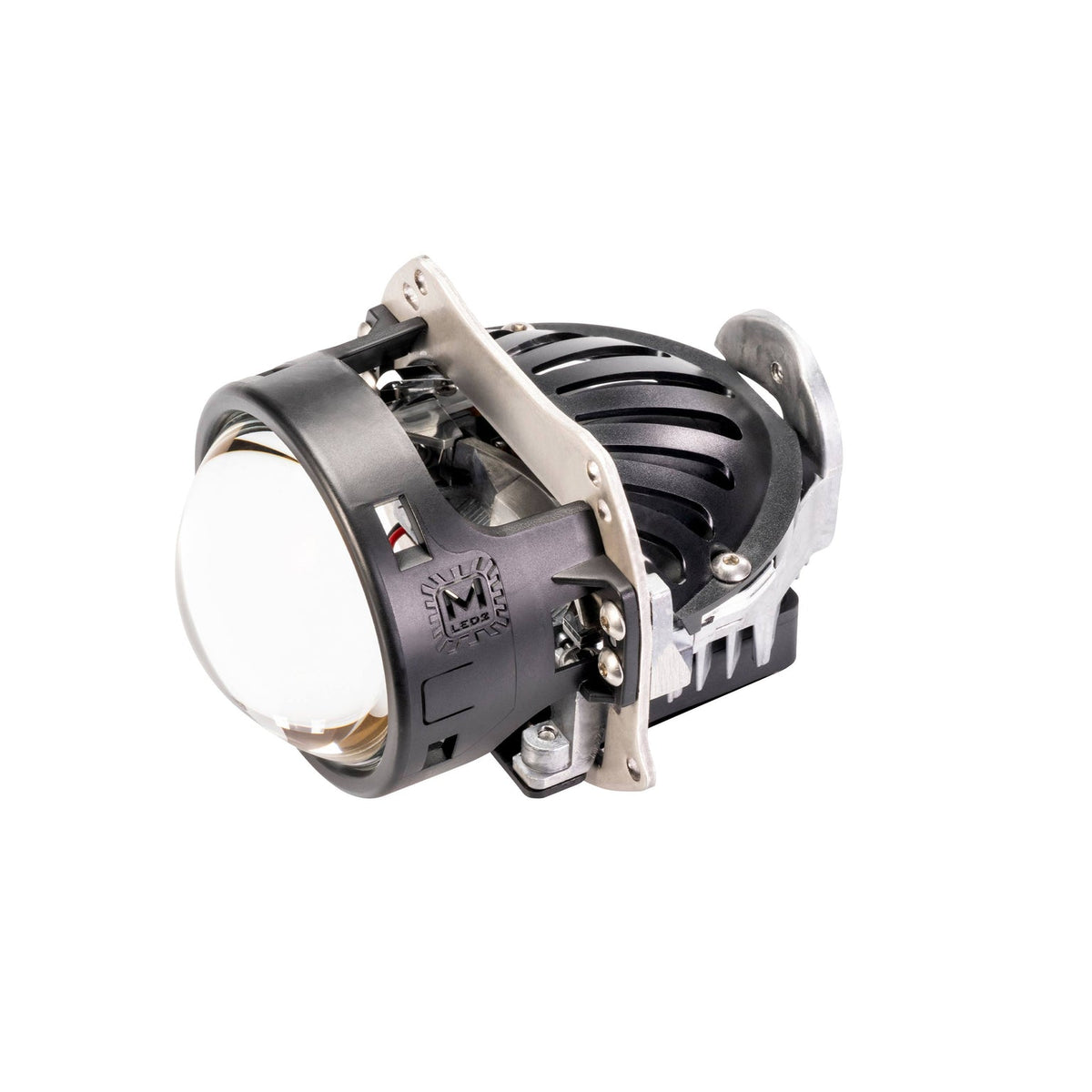

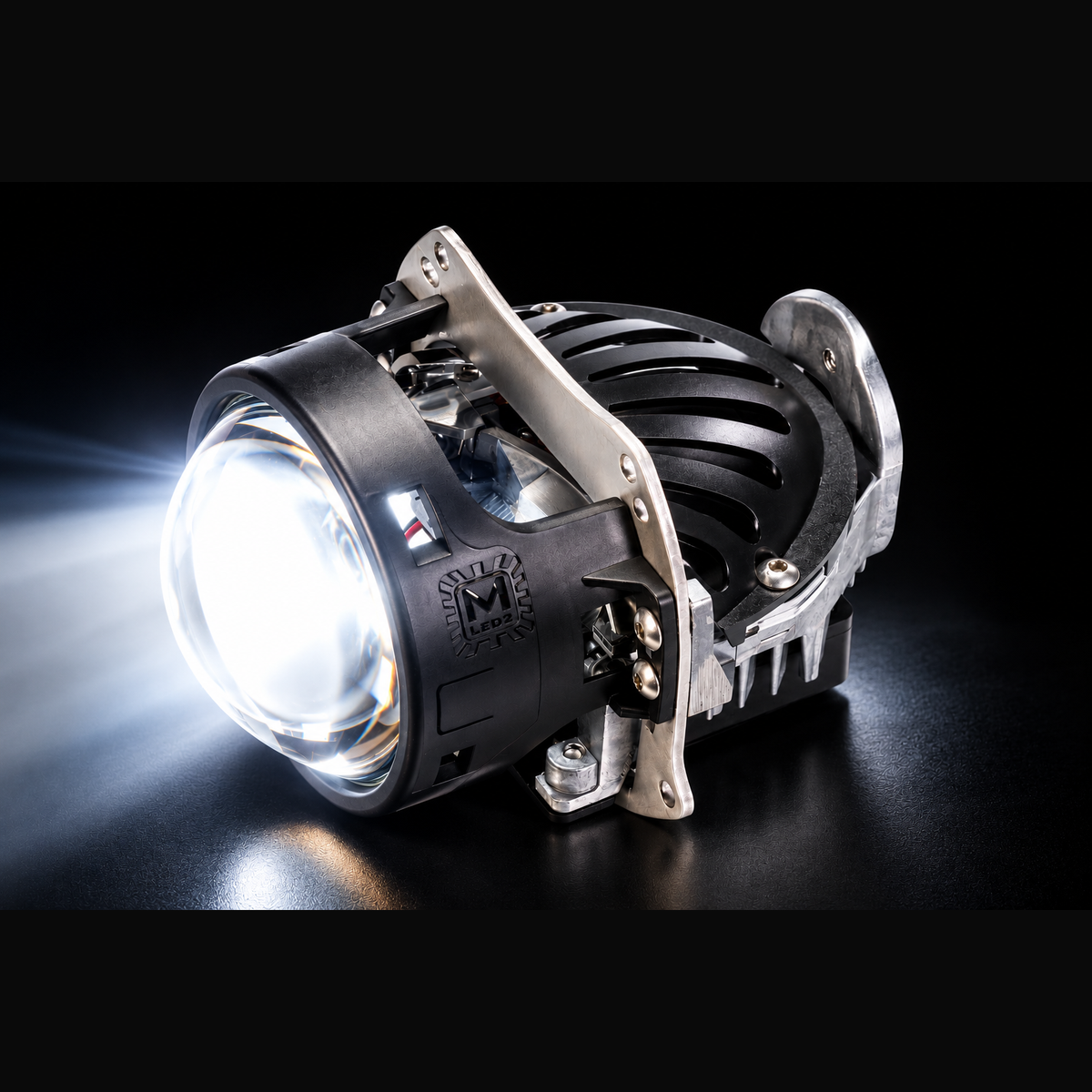

The Morimoto M LED 2.0 is Morimoto's flagship 3" bi-LED projector, and this is the right-hand drive version, with a beam cut-off made for driving on the left. It gives a wide, sharp low beam and a strong high beam from one compact unit, with no separate bulbs, ballasts or relay harnesses to fit.

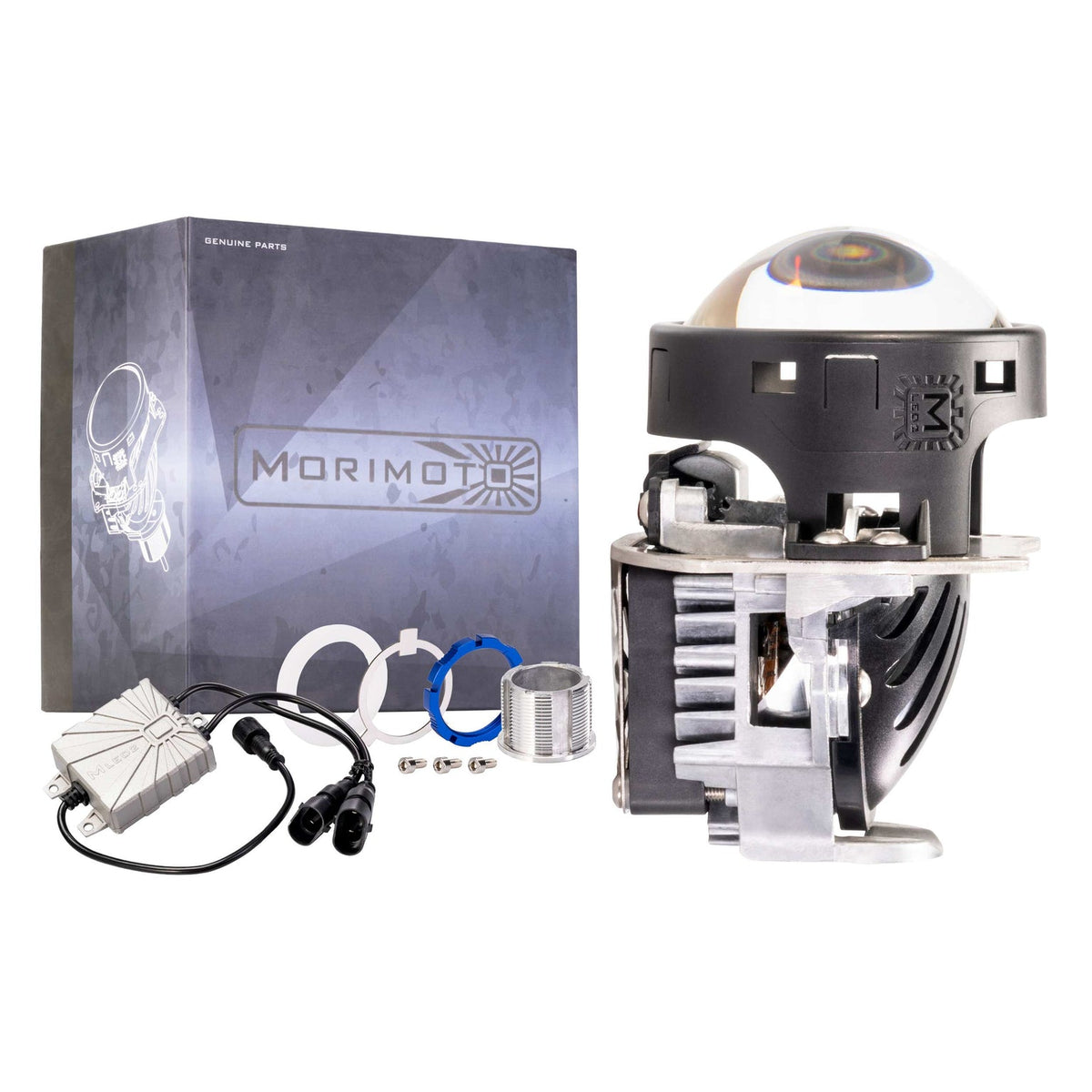

Each projector has a Kuria optic glass lens, a dual reflector bowl tuned for width and spread, and a cooling fan built into the heat sink, all run from a small external LED driver. The threaded mounting shaft is removable and the projector uses the D2S 4.0/5.0 bolt pattern, so it takes most 3" Morimoto shrouds. Sold as a pair with drivers and mounting hardware, and backed by Morimoto's 5-year warranty.
Features & Benefits

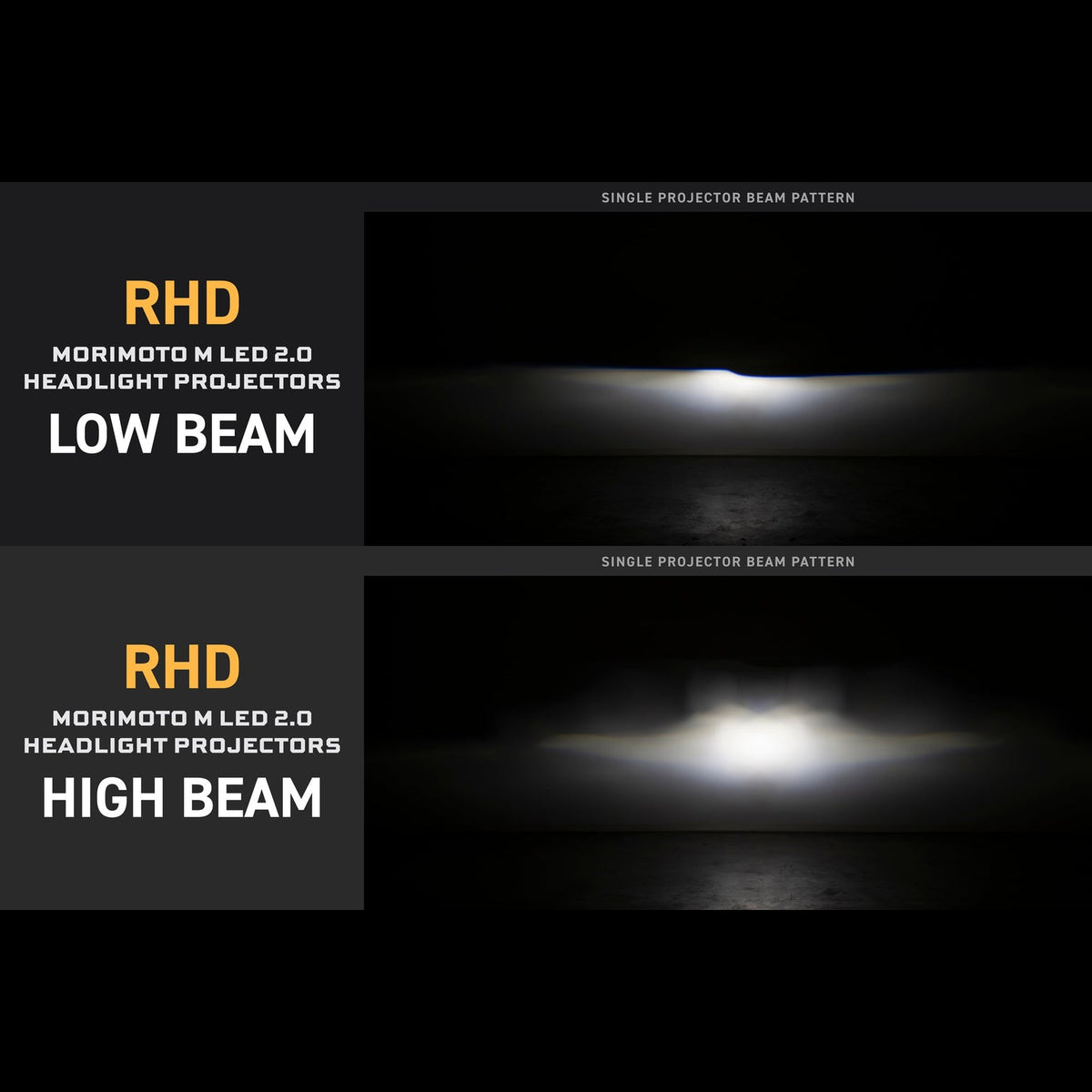

RHD Beam Pattern for NZ Roads
Right-hand drive cut-off for driving on the left, so the low beam lights up the kerb side without dazzling oncoming traffic.
Bi-LED Low & High Beam
One projector handles both beams, with instant-on LED output and no warm-up.

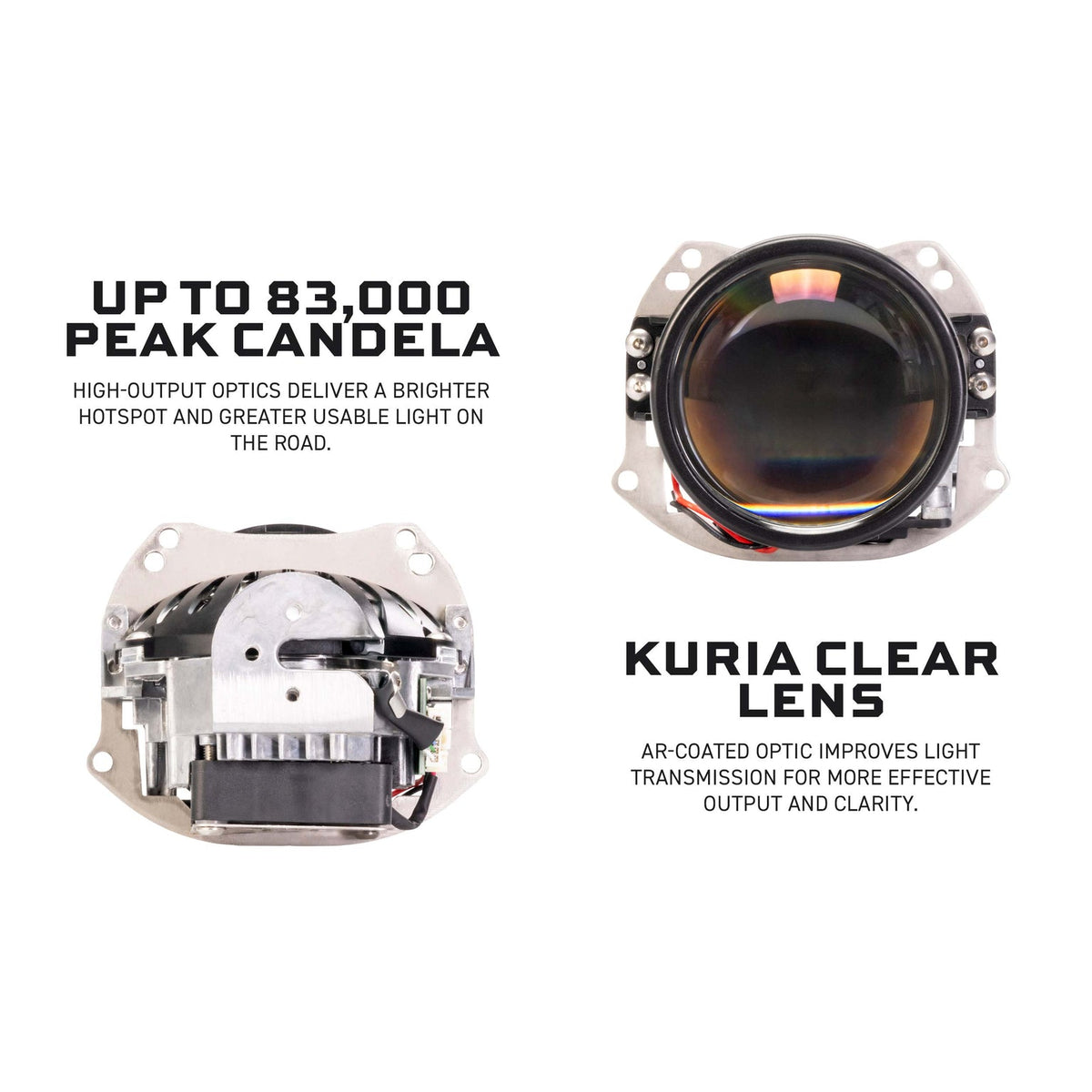

Kuria Optic Glass Lens
Clear sapphire glass lens for a crisp, colourful cut-off line.
Wide, Even Spread
Dual reflector bowl engineered to put light down the road and well out to the sides.
Active Cooling
A fan sunk into the heat sink keeps the LEDs cool without adding much depth.

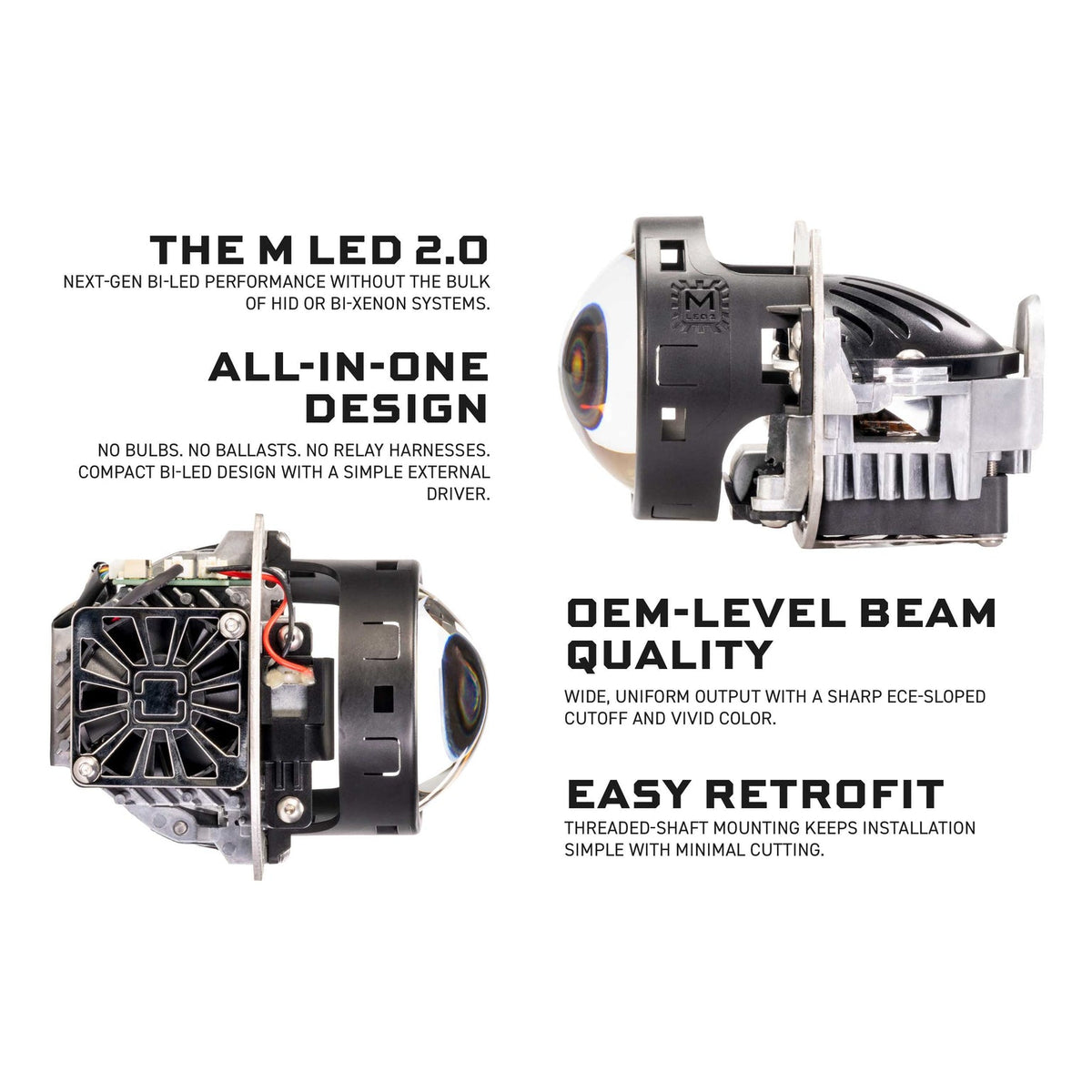

Simple Wiring
Just the projector and a compact external driver, with a sealed grommet and connectors that unplug easily.
Shroud Compatible
Takes all 3" shroud styles except Mini and Square, with no centric rings needed.
5-Year Warranty
Backed by Morimoto.
Want them fitted? We can fit these into your headlights as part of a custom build. Get in touch for a quote.

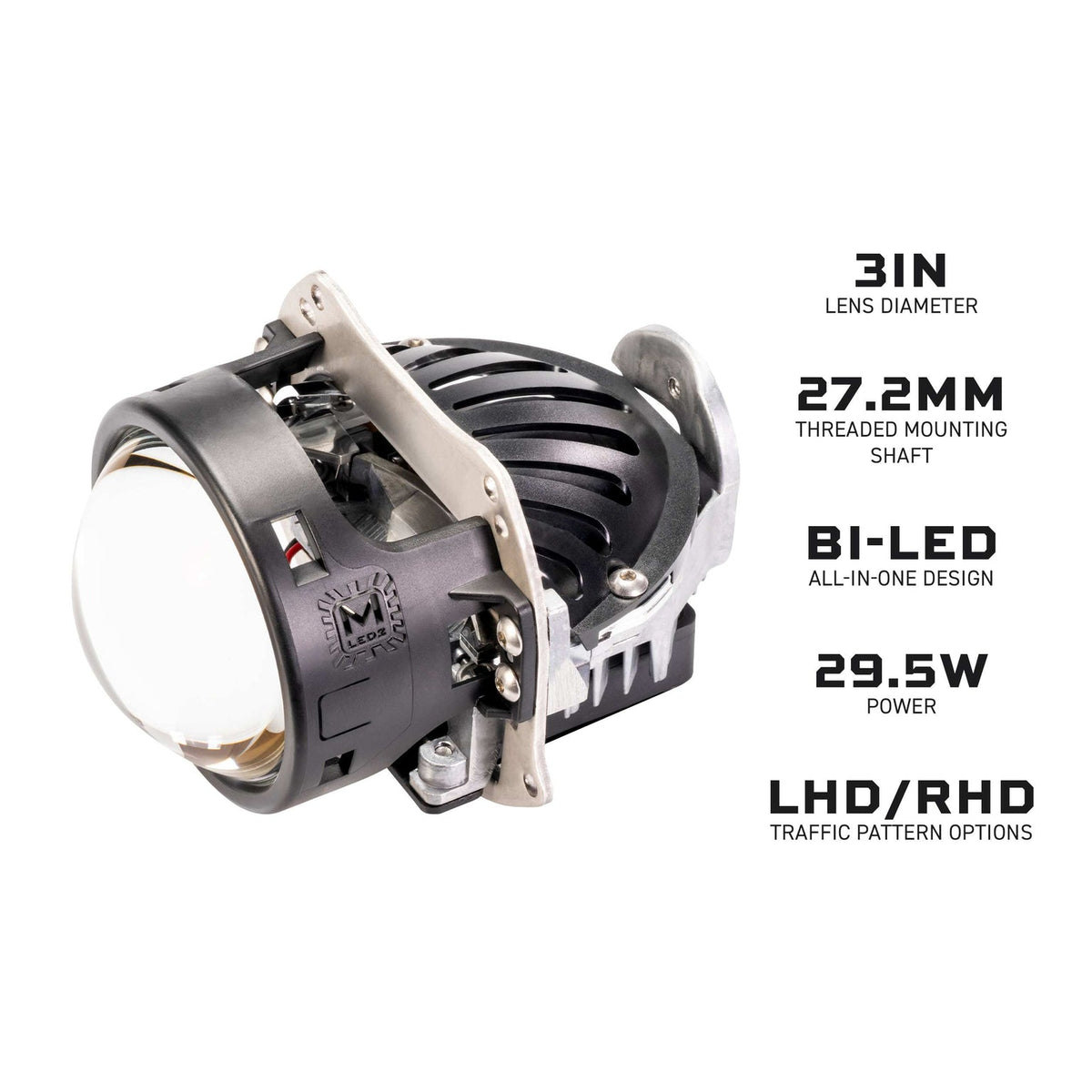

Technical Specifications
- Brand: Morimoto
- Model: M LED 2.0 Bi-LED (RHD)
- Beam Cut-off: Right-hand drive (RHD)
- Lens Diameter: 3.0"
- Lens: Sapphire "Kuria Optic" glass
- Light Source: HML-3 7545 LED on a ceramic substrate, 6300K
- Intensity: 70,000cd
- Power: 29.5W per projector
- Input Voltage: 9 to 16V DC
- Dimensions: 82mm H, 95mm W, 124mm D (150mm with shaft)
- Minimum Housing Depth: 124mm
- Shaft Diameter: 35mm
- Bolt Pattern: D2S 4.0/5.0 standard
- Fitment: H4 headlights with little to no modification, others with modification
- Warranty: 5 years

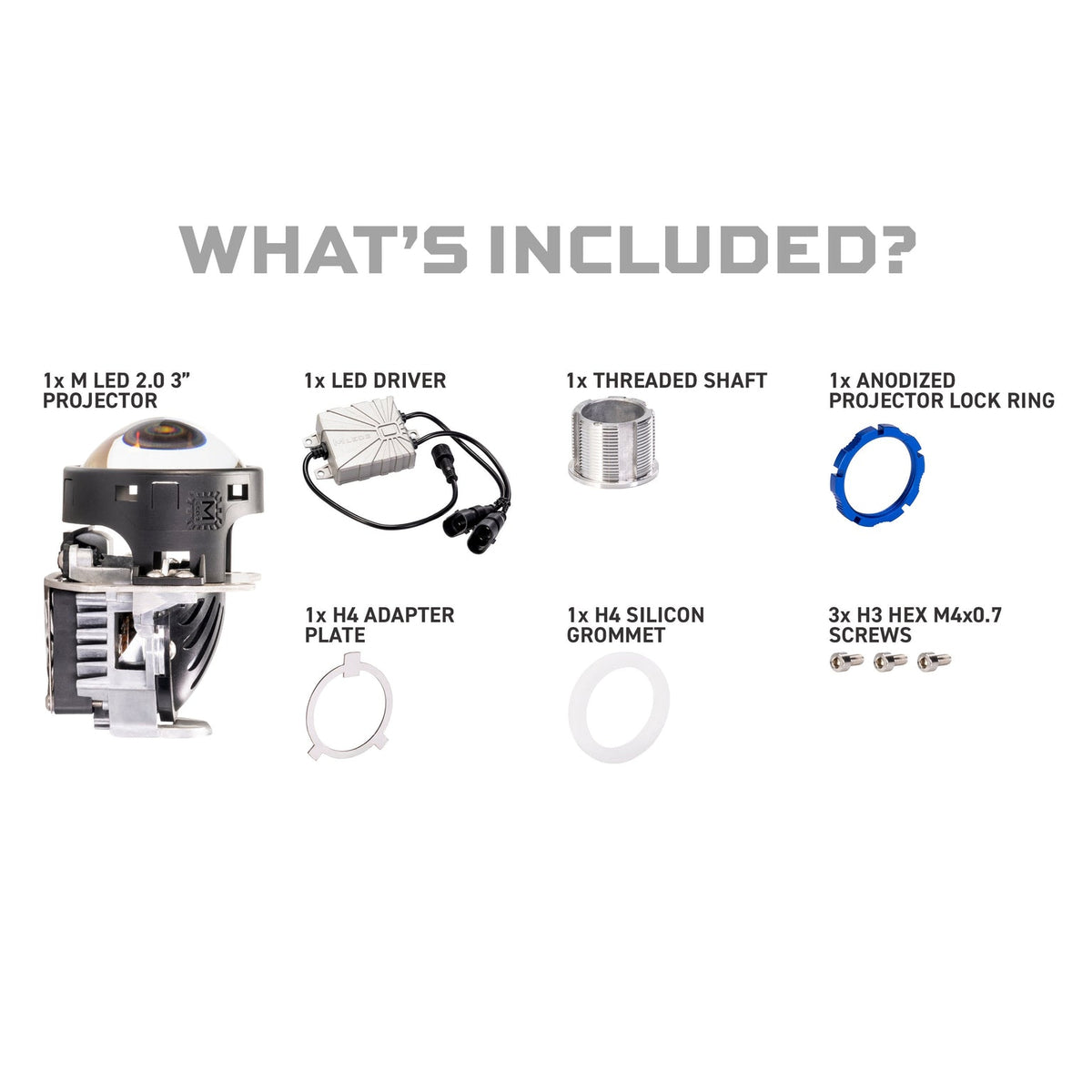

- Quantity: 2× projectors (1 pair), 2× LED drivers, threaded shafts with lock rings
