iilumo iiMH1 Bi-Xenon Projectors (2.5" RHD)
iilumo iiMH1 Bi-Xenon Projectors (2.5" RHD)
Couldn't load pickup availability
Free Shipping
On all NZ orders
Installation Available
Get a fitting quote
Buy Now, Pay Later
Pay in 4 with Afterpay
Description

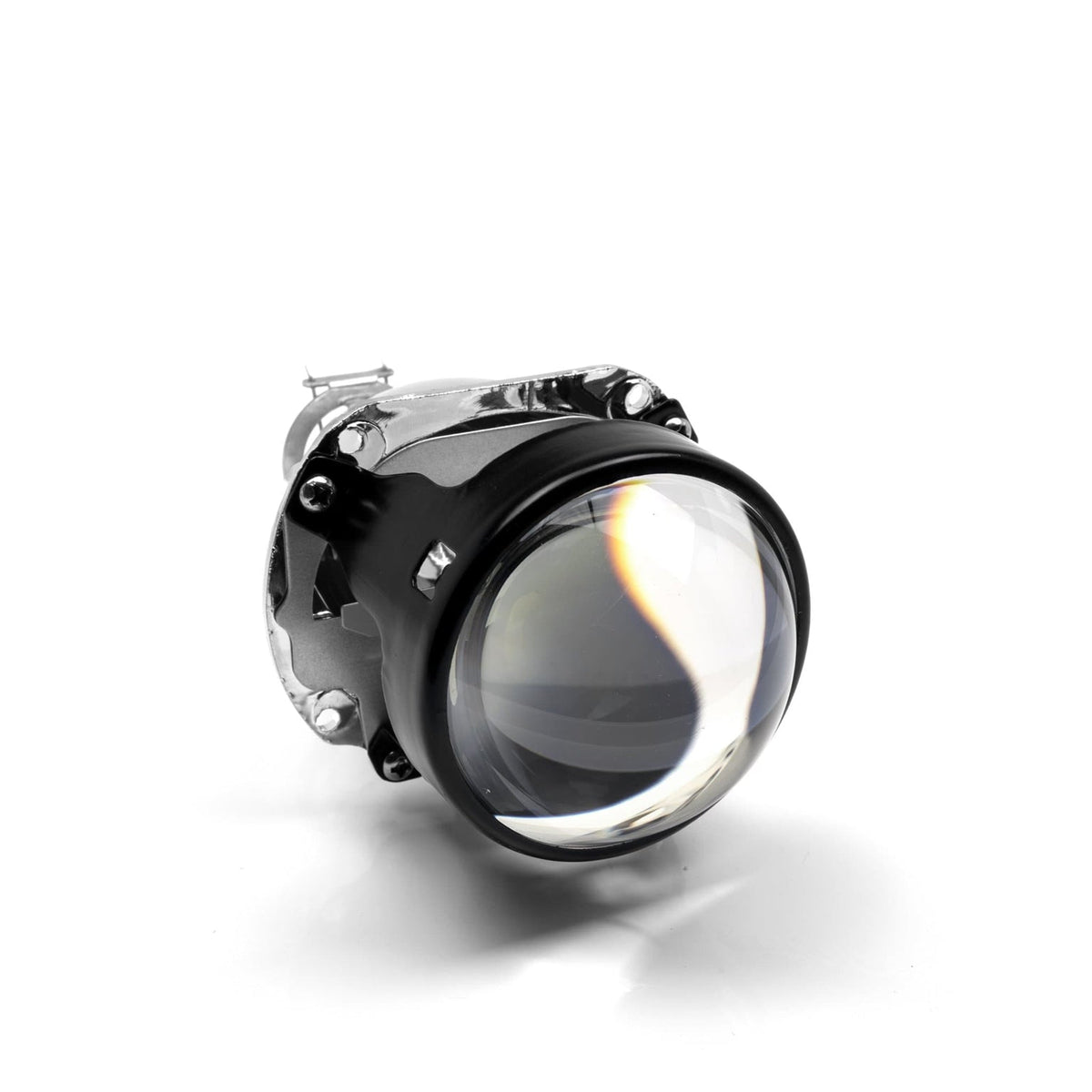

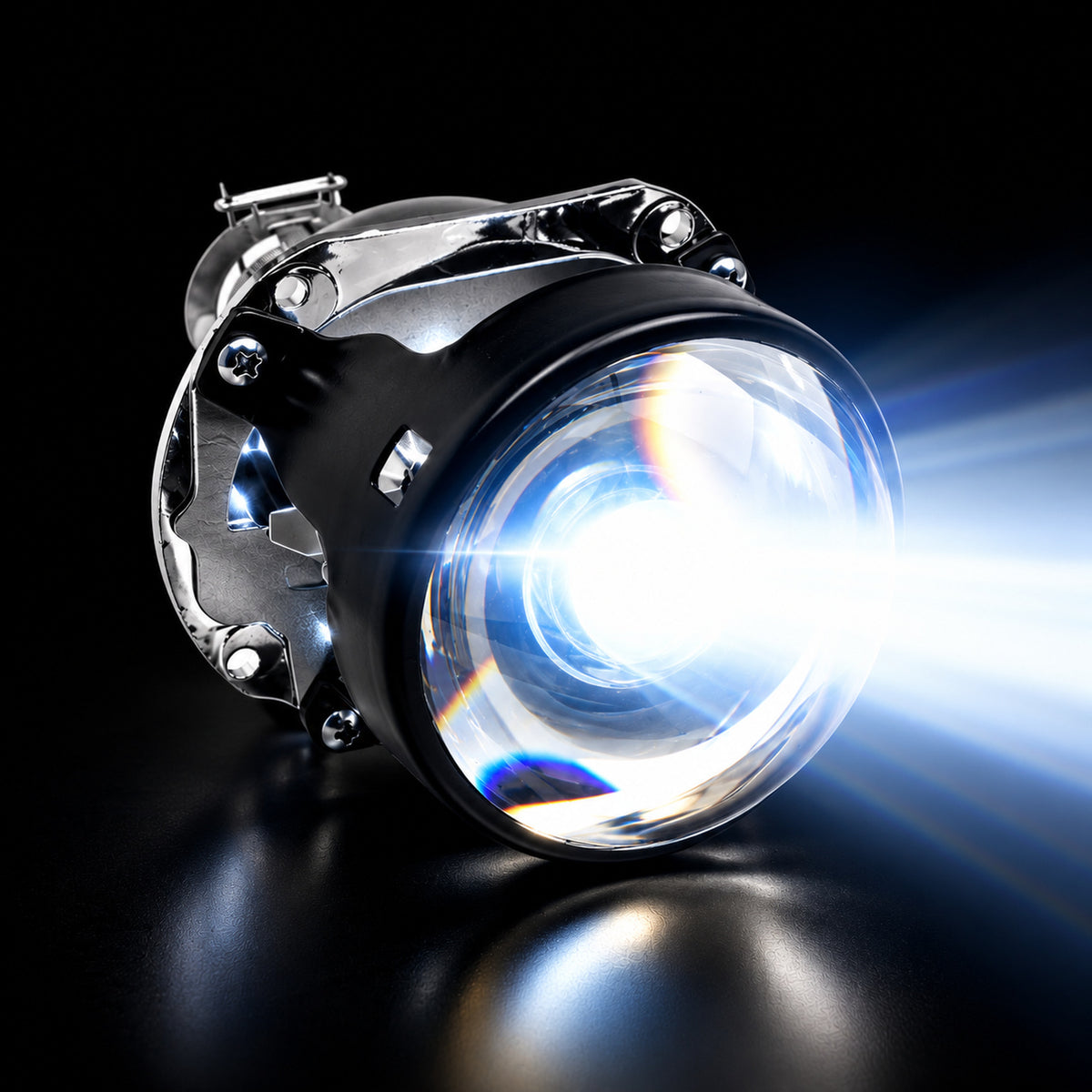

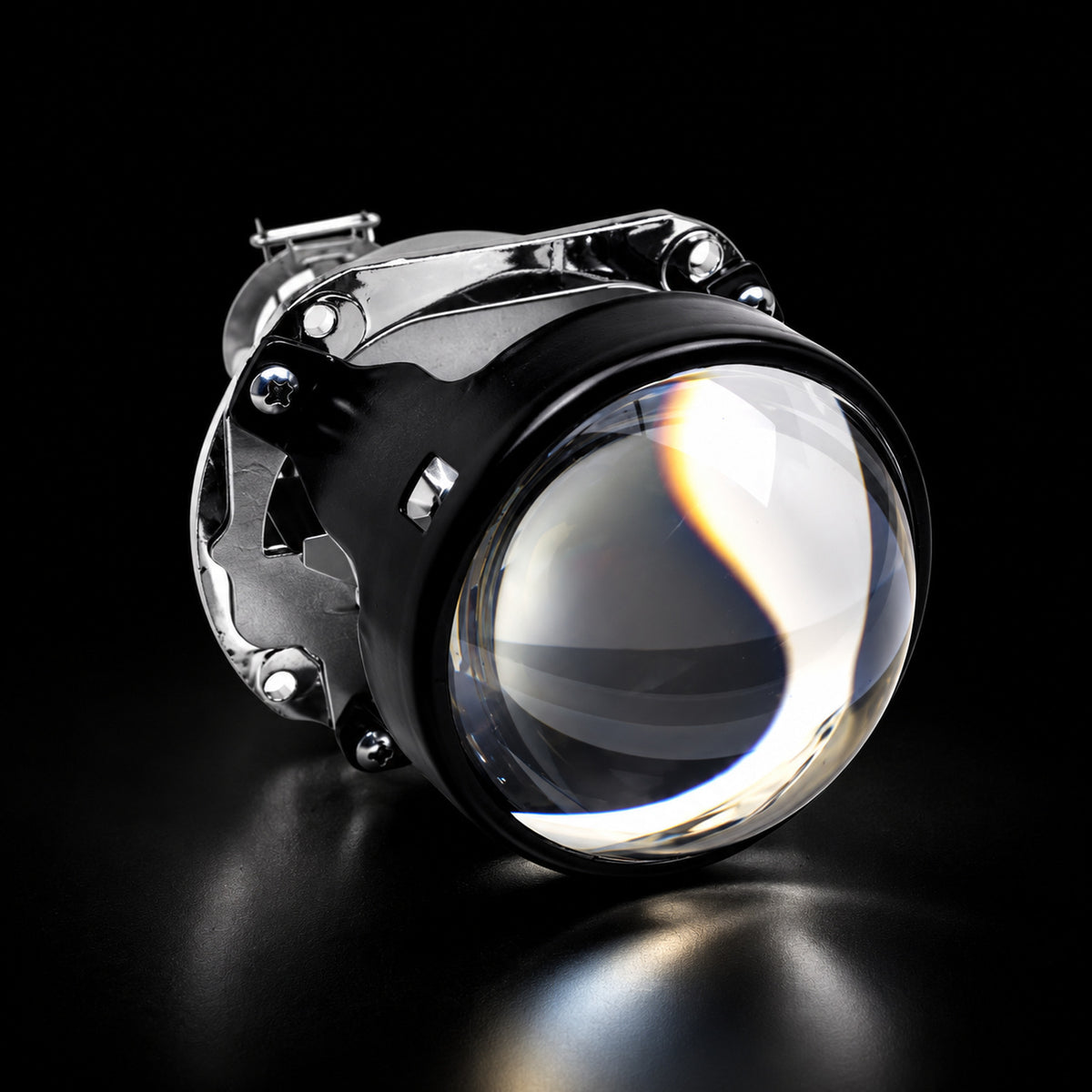

The iiMH1 is a compact 2.5" bi-xenon projector that runs on H1 HID bulbs. It's small but bright, with a clear glass lens for a sharp cut-off and a focused beam, and a right-hand drive shield made for driving on the left.
The small body and 20mm threaded shaft make it one of the easiest projectors to fit, usually without cutting into the headlight housing for clearance. A popular choice for builds where space is tight. Sold as a pair with mounting hardware and backed by iilumo's 3-year warranty.
Features & Benefits

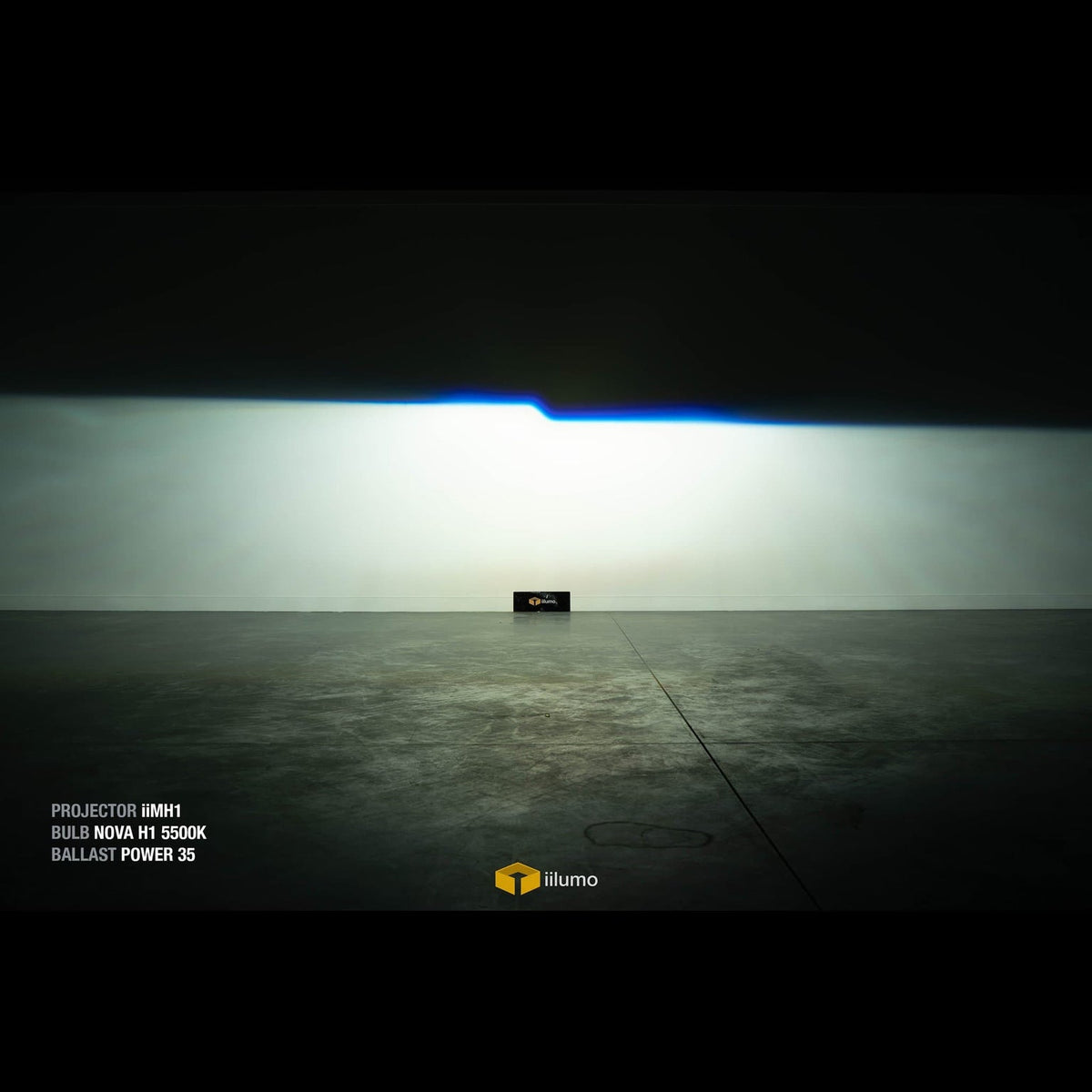

RHD Beam Pattern for NZ Roads
Right-hand drive cut-off shield for driving on the left.
Bi-Xenon Low & High Beam
One projector and one H1 HID bulb handle both beams.

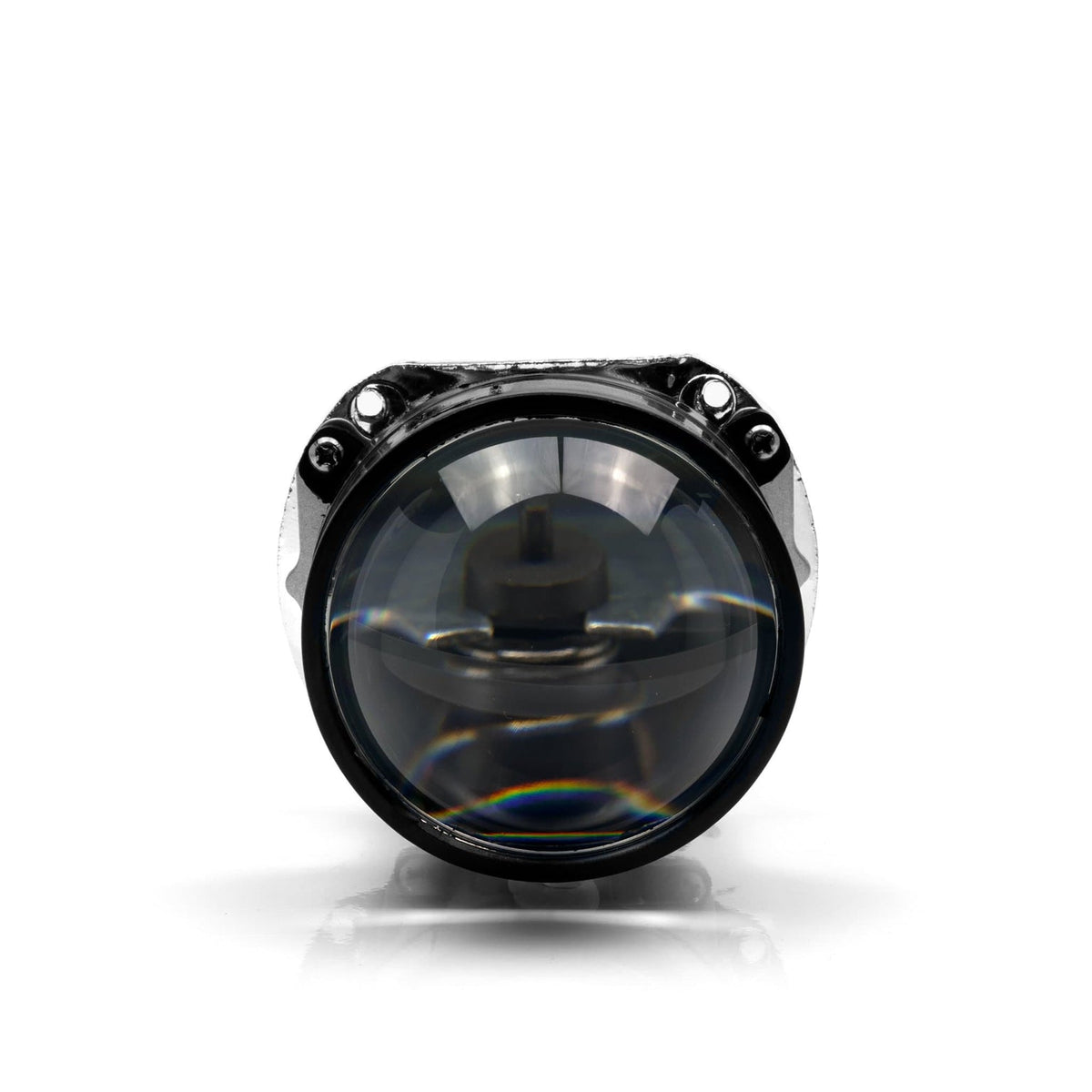

Clear Glass Lens
Sharp cut-off and a focused beam.
Compact Size
Fits tight housings with little or no trimming.
Easy Mounting
20mm threaded shaft with lock nut, plus H4 and H7 adapter plates in the hardware pack.
Shroud Compatible
Mini shrouds fit directly, and full-size shrouds fit with centric rings.
3-Year Warranty
Backed by iilumo.
These run H1 HID bulbs on 35 to 55W ballasts, sold separately. Our Morimoto XB35 2.0 ballasts in the AMP version suit H1 bulbs.
Want them fitted? We can fit these into your headlights as part of a custom build. Get in touch for a quote.
Technical Specifications
- Brand: iilumo
- Model: iiMH1 bi-xenon
- Beam Cut-off: Right-hand drive (RHD)
- Lens Diameter: 2.5"
- Lens: Clear glass

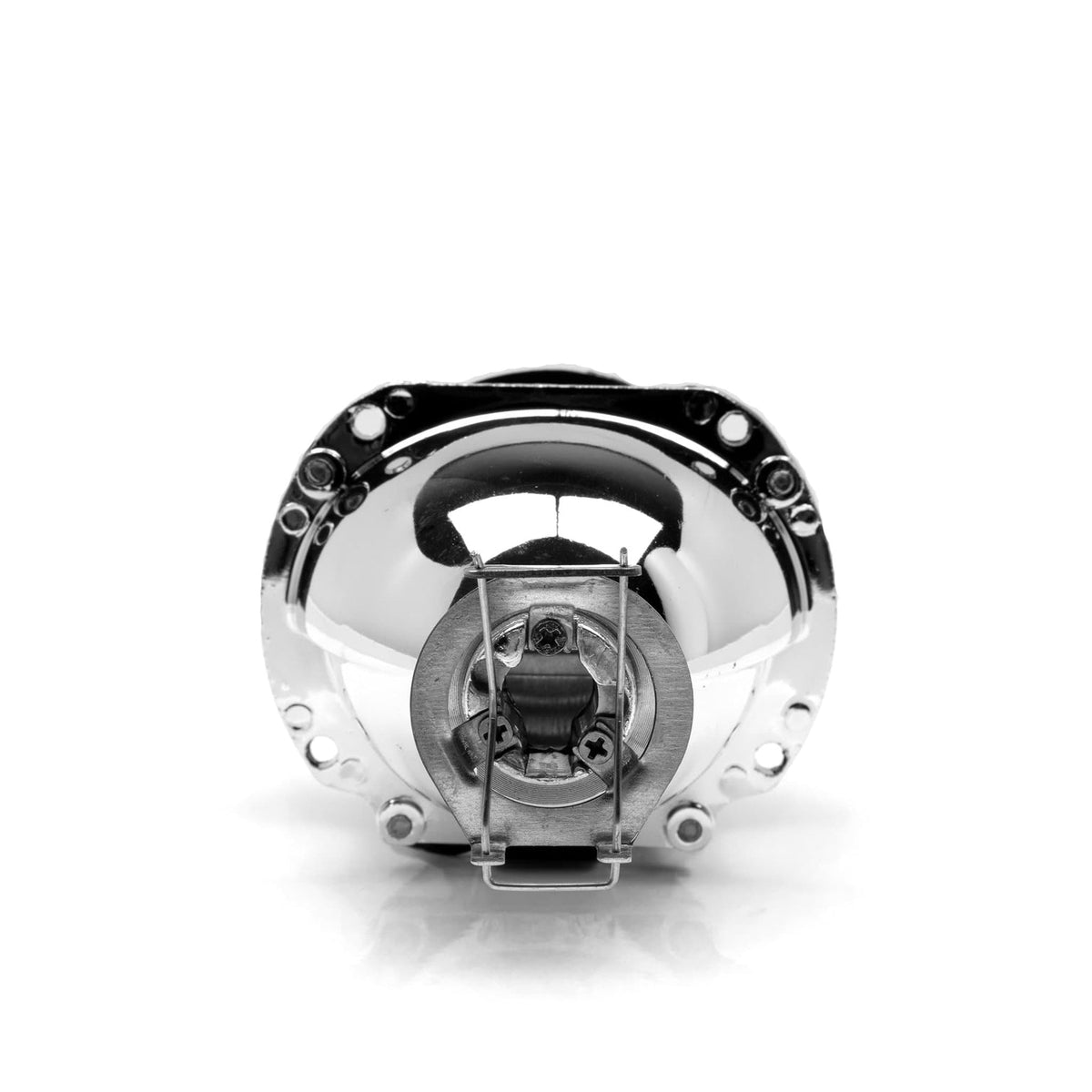

- Bulbs: H1 HID (not included)
- HID System: 35 to 55W
- Height: 75mm
- Length: 72mm
- Maximum Depth: 145mm
- Minimum Housing Depth: 120mm

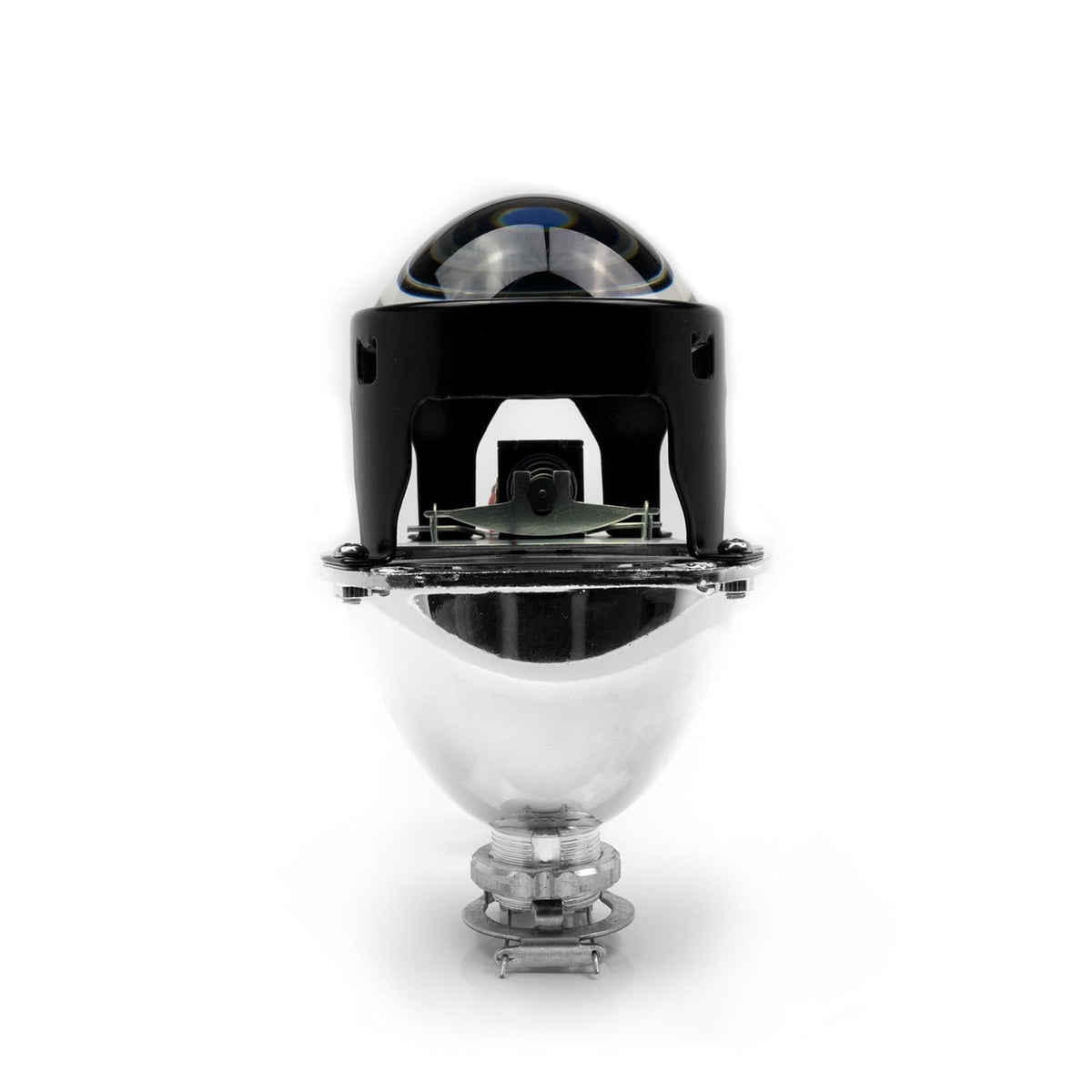

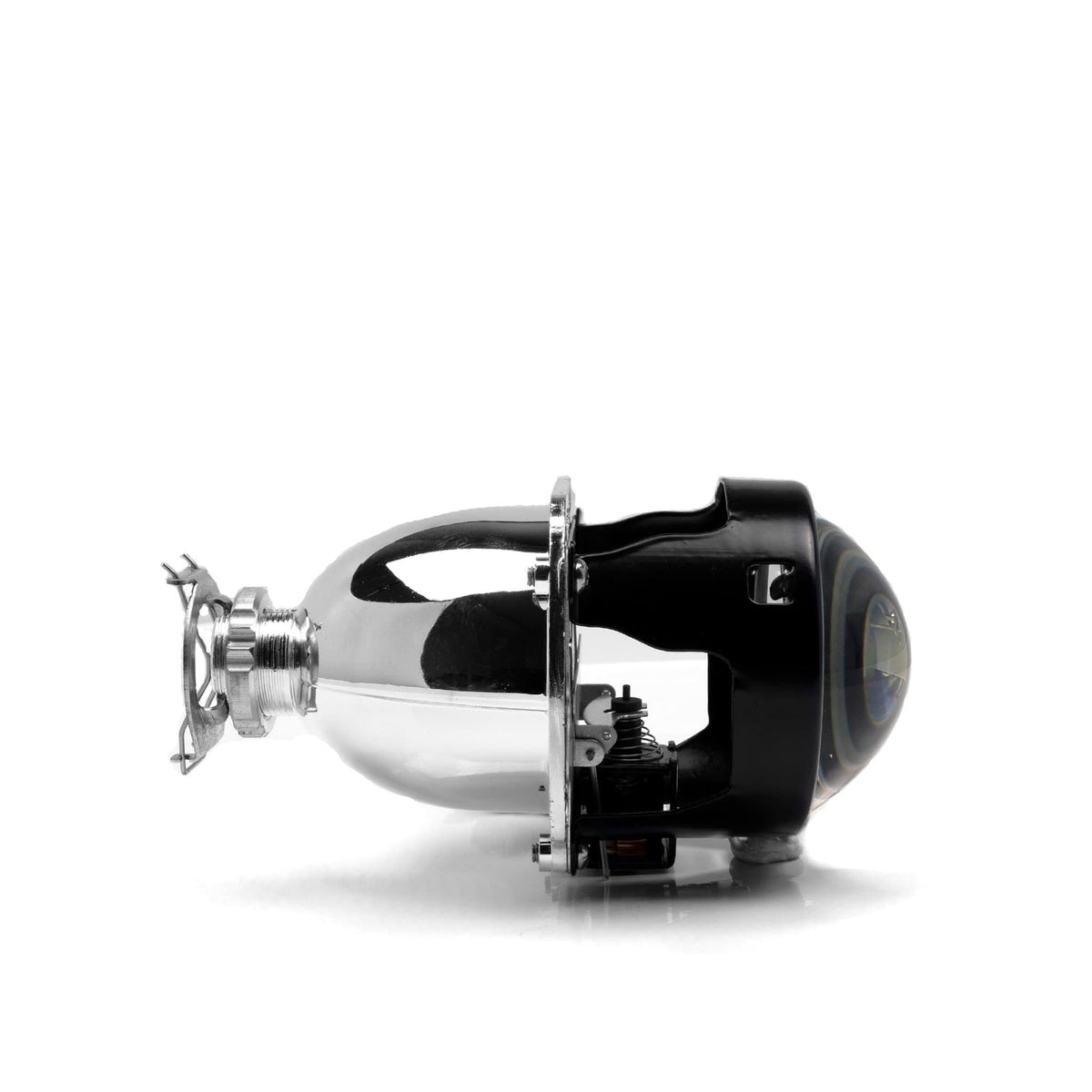

- Mounting Shaft: 20mm, with 28mm lock nut
- Warranty: 3 years
- Quantity: 2× projectors (1 pair), 2× hardware packs (lock nuts, seals, H4 and H7 adapter plates)
